Real Time Wireless Temperature Data Logger with Flexible Sensor
Wireless Data Logger GMP RF F 2R22V
short term range: -120°C for 30 mins
operating range: -90°C to +85°C

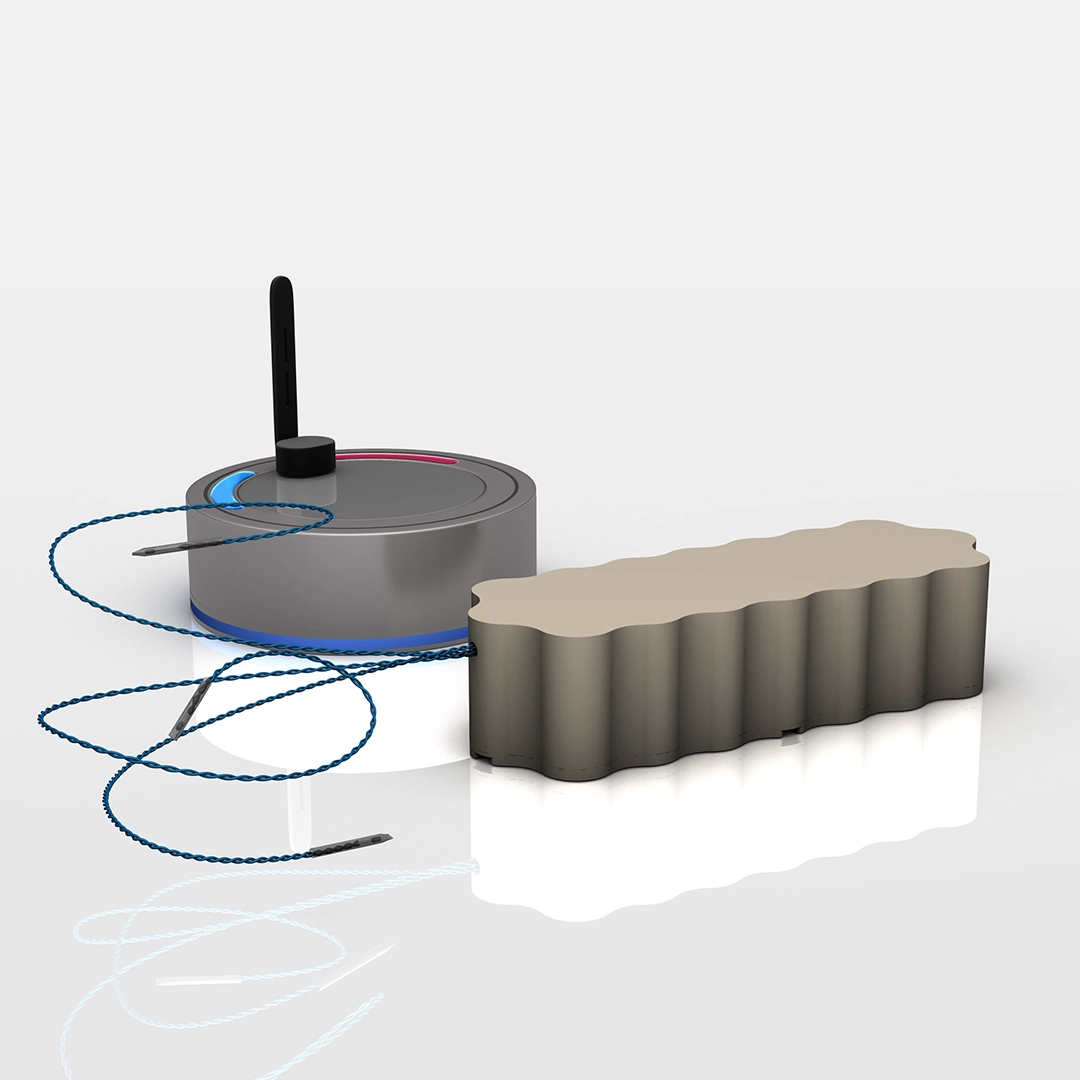

XpertLog® GMPF RF Temperature data logger having the size of 20 x 2 ml vials for ULT and Lyo
+Real Time Data Logger packaged into the size of 22 x 2 ml vials for use in ULT freezer and Lyo product temperature mapping
Order Reference
GMP-RF-F-2R22V
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Sensor Type
4 wires thin
- flexible
430 mm (17") or custom lenght
- customized
up to 5000 mm (195")
- sensor size
1.2 x 1.6mm (0.05 x 0.06")
- cross section
0.48 mm2 (0.0007 inch2)
- body
short term range: -120°C for 30 minutes
operating range: -90°C to +85°C
- sensor
-200°C to +200°C
Accuracy
±0.1°C from -90°C to +140°C
Resolution
0.01°C
Memory capacity
32,000 data points
Memory type
non volatile
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 20 loggers
sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
- enclosure
IP-68
- weight
173 g (6.10 oz)
- size
L: 100 mm (3.94")
l: 64 mm (2.52")
- height
33 mm (1.30")
Power
2 x Lithium batteries, 0.35 g/each Lithium content classified UN3091 under IATA DGR section 3.9.2.6 compliant with ICAO/IATA packing instructions 970, user replaceable
Battery lifetime
Up to 6 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band
Access point
USB to computer
Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations:
User Calibrations:
traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog® Software
Standard Calibration Points
• -196°C
• -80°C
• 0°C
• 85°C
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
