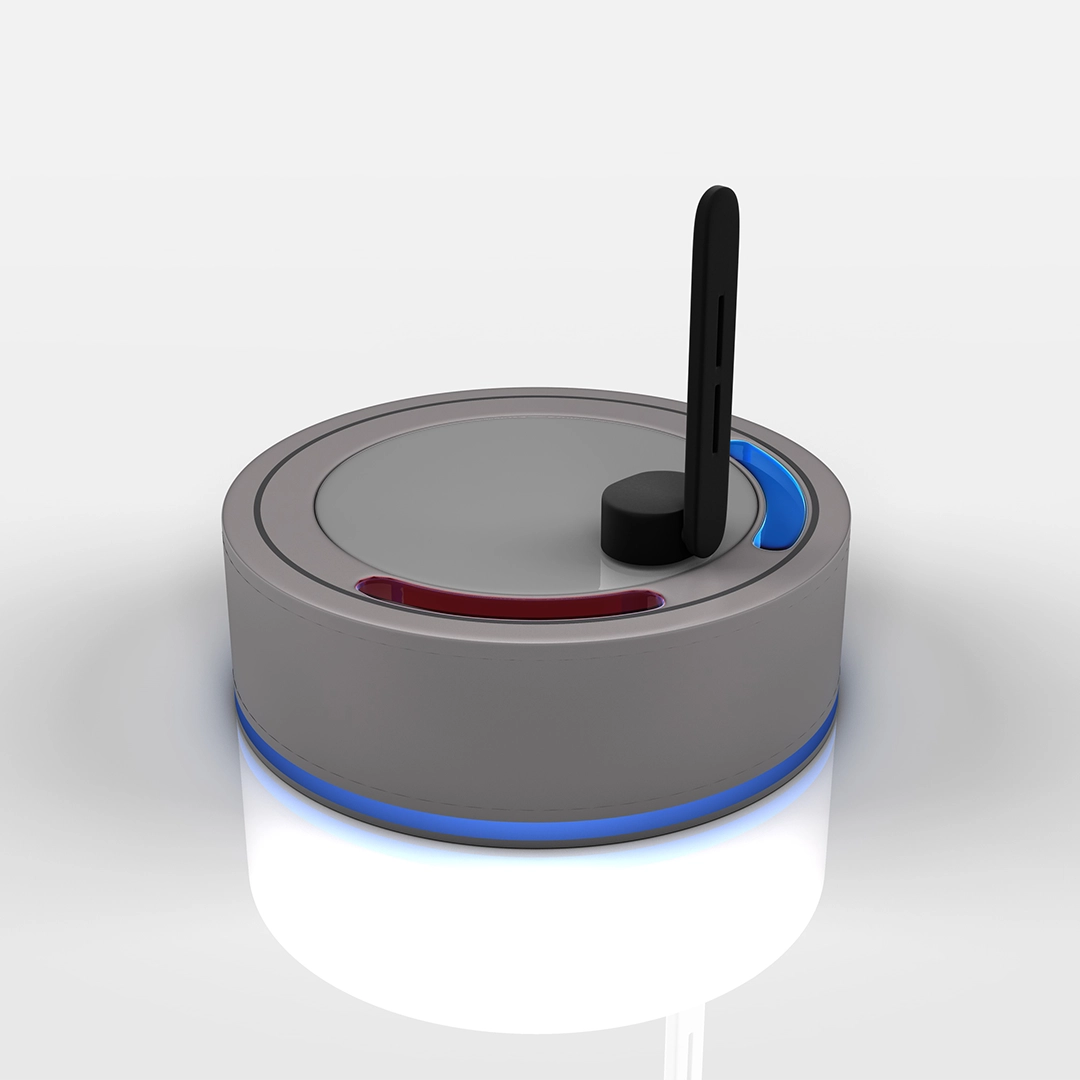

Access Point for real time wireless data loggers
Access Point LAN
Allows you to remotely connect to the wireless data loggers. Supports unlimited number of data loggers. Compatible with Xpert RTD: allows you to transform Xpert RTD int oa RF reference probe.
+ Allows you to remotely connect to the wireless data loggers
+ Supports unlimited number of loggers
+ Compatible with Xpert RTD: allows you to transform Xpert RTD into a RF reference probe
+ Visual and acoustic notification while communicating with devices
+ Ethernet and USB connection to computer
Order Reference
AP-RF-LAN
Documents
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Operating Range
0°C to +50°C non condensing
Mechanical
- material
Stainless steel
- enclosure
IP-51
- weight
641 g (22.61 oz)
- diameter
97 mm (3.82")
- height
32 mm (1.26")
Power
External
Antenna
External
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band
Access point
USB to computer
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
Models
WIRELESS DATA LOGGER GMP RF F
WIRELESS DATA LOGGER GMP RF F LP
WIRELESS DATA LOGGER GMP RF 5f
WIRELESS DATA LOGGER GMP RF 5f ht
WIRELESS DATA LOGGER GMP RF F MINI THIN
WIRELESS DATA LOGGER GMP RF F 10R THIN
WIRELESS DATA LOGGER GMP RF F 10R
WIRELESS DATA LOGGER GMP RF F 10RA
WIRELESS DATA LOGGER GMP RF F 10RA Thin
WIRELESS DATA LOGGER GMP RF F 30H
WIRELESS DATA LOGGER GMP RF
WIRELESS DATA LOGGER GMP RF TH
WIRELESS DATA LOGGER GMP RF TH F
WIRELESS DATA LOGGER GMP RF TP
WIRELESS DATA LOGGER GMP RF TP F
WIRELESS DATA LOGGER GMP RF TCO2F
