Real time GPS Tracker

XperTrack

-30°C to +60°C

XperTrack allows you to remotely control your cold chain shipments.

+ Remotely control your cold chain shipments
+ Prevents drug shortage
+ Allows you to control shipments integrity
+ Collects and stores temperature, position, light exposure and shocks data in the internal memory
+ Alamrs are triggered when your products exceed the allowed temperature, light exposure and shocks during shipments
+ Geo-fencing (user definable)
+ Instantaneously detect if your shipment has been tampered, displaying the current position and temperature of your container
+ Complies with FDA 21 CFR Part 11

Order Reference

XTrack-Permanent

Overview

XperTrack remotely controls your cold chain shipments

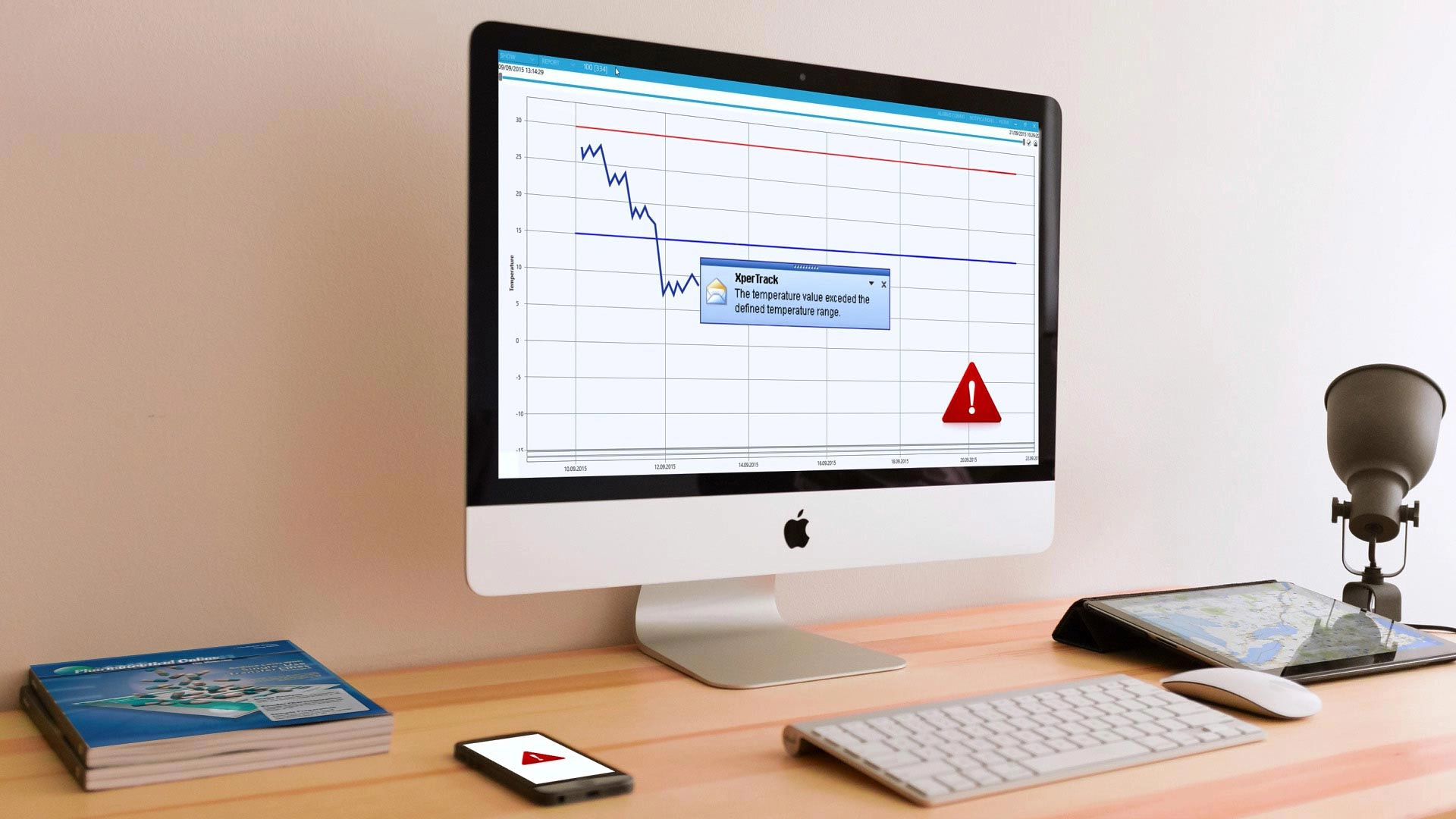

Prevent drug shortage: Alarms are triggered when your products exceed the allowed temperature and vibrations during shipments.
Shipments integrity: Instantaneously detect if your shipment has been tampered, displaying the current position and temperature of your container

Specifications

Characteristics

LVSC.3.2.0 - January 2022

Sensor Type

Interchangeable sensors
Most common sensor types: PT-100, Tc's, Humidity, Pressure, CO2

- flexible

480 mm (19")

- customized

up to 5000 mm (195")

- sensor size

1.5 x 8 mm (0.06 x 0.315")

- cross section

1.77 mm2 (0.0027 inch2)

- body

-30°C to +60°C

- sensor

-200°C to +200°C

Accuracy

±0.1°C

Resolution

0.01°C

Memory capacity

128,000 data points

Memory type

non volatile

Data sampling rate

- temperature/position 30 sec to 24 hours - user configurable
- shocks instantaneous on event

Data update rate

20 min to 24 h - user configurable
(typically 6 hours)

Mechanical

- material

Ertacetal - FDA Compliant

- enclosure

IP-30

- weight

375g (13.23 oz)

- size

134/104/28 mm (5.28/4.10/1.10")

Power

2 x Lithium rechargeable batteries
classified UN3091 under IATA DGR section 3.9.2.6
compliant with ICAO/IATA packing instructions 970,
user replaceable

Antenna

Internal

Calibrations

Factory Calibrations:

traceable NIST/COFRAC - ITS-90 coefficients
stored in the internal memory
