XSens TC J KAP

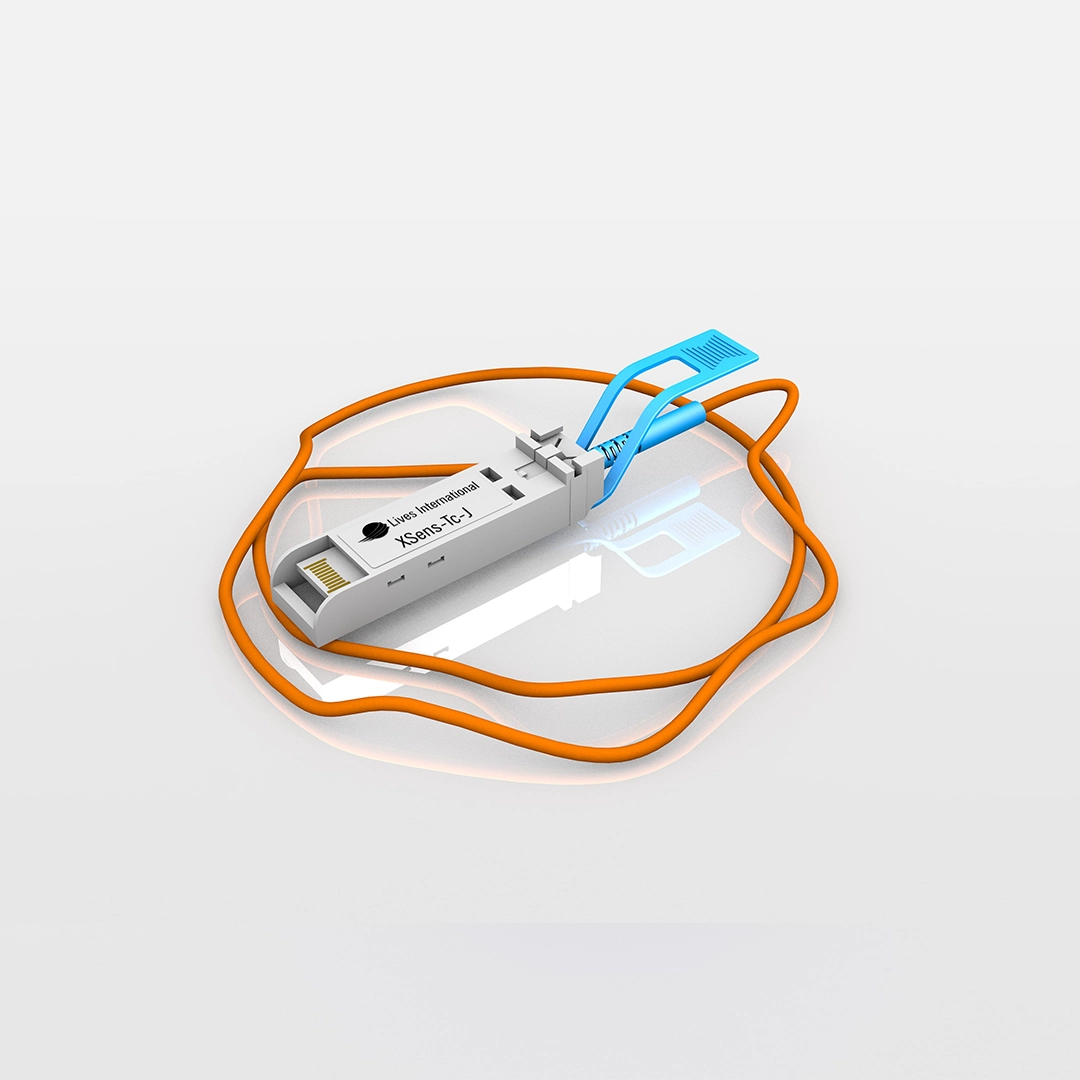

Xpert Sensor Thermocouple Type J, Kapton coated
XSens TC J KAP
Temperature range: -240°C to +350°C (continuous)
Type J Thermocouple

• 1 proprietary connector with unique S/N and Type J Thermocouple attached
• ITS-90 calibration coefficients stored in the internal memory
• Compatible with XpertVal64 and XpertMon
• Interchangeable Sensors with complete traceability
• Secure connection to prevent accidental uncoupling

Quote Request
Order Reference
XSens-TC-J-KAP-5m
XSens-TC-J-KAP-6m
XSens-TC-J-KAP-10m
XSens-TC-J-KAP-12m
Specifications
Characteristics
Accuracy uncalibrated
±1.1°C or 0.4% (whichever is greater)
Temperature range
-240°C to +350°C (continuous)
Gauge
24 AWG
Sensor length
5/6/10/12 m (17/20/33/40 feet)
Cable type
Kapton
Premium type J
