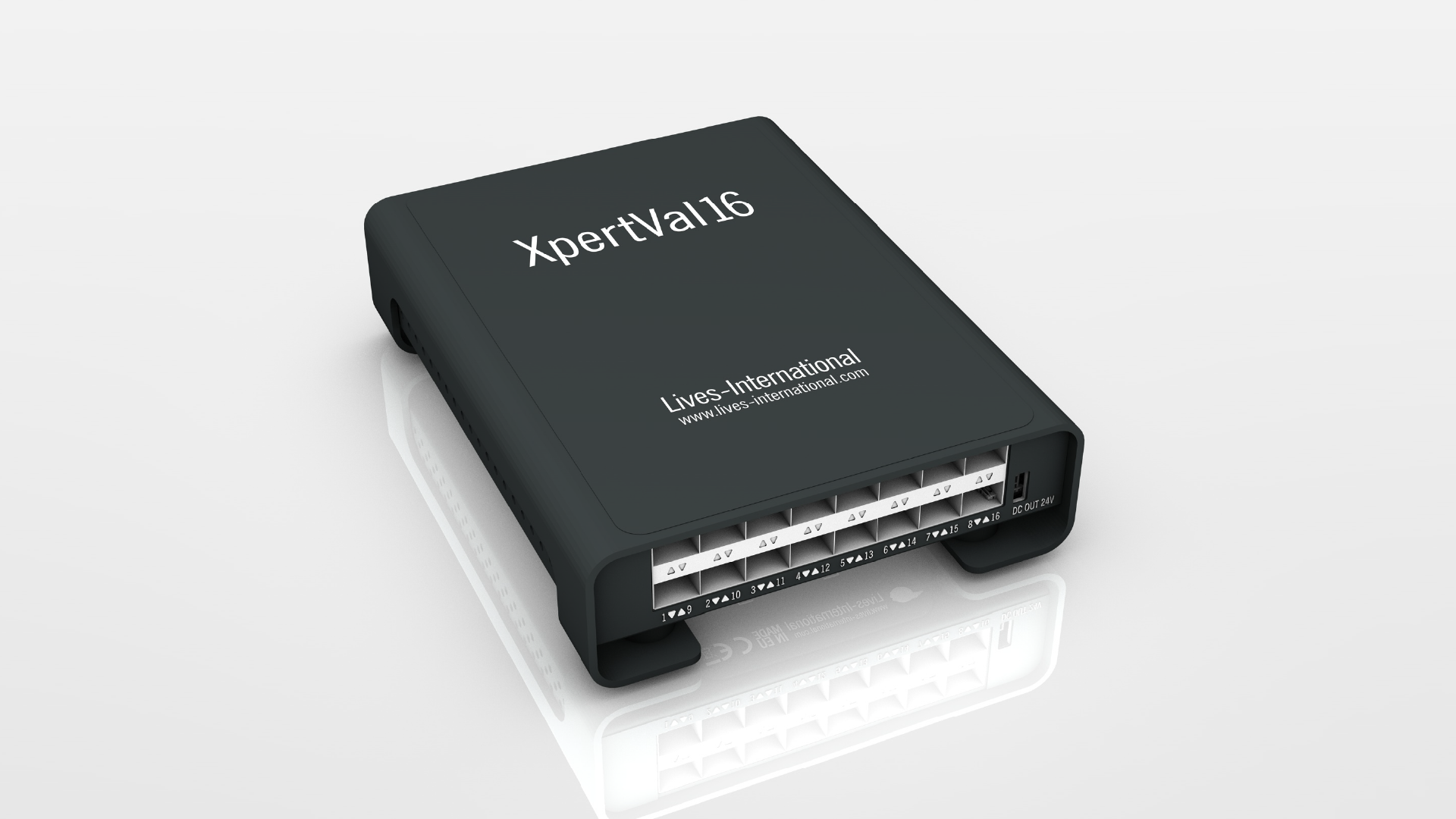

16 Channels data acquisition system for thermal mapping and validation with multiple types of sensor (TC, PT100, Pressure, Humidity, 0-10V, 4-20mA, CO2).
• 16 channels thermocouple systems • Most common sensor types • Coefficients stored for each sensor • Sensors compatible with XpertMon • Cloud/local based data storage
Interchangeable sensors Most common sensor types: PT-100, Tc's, Humidity, Pressure, CO2
Channels

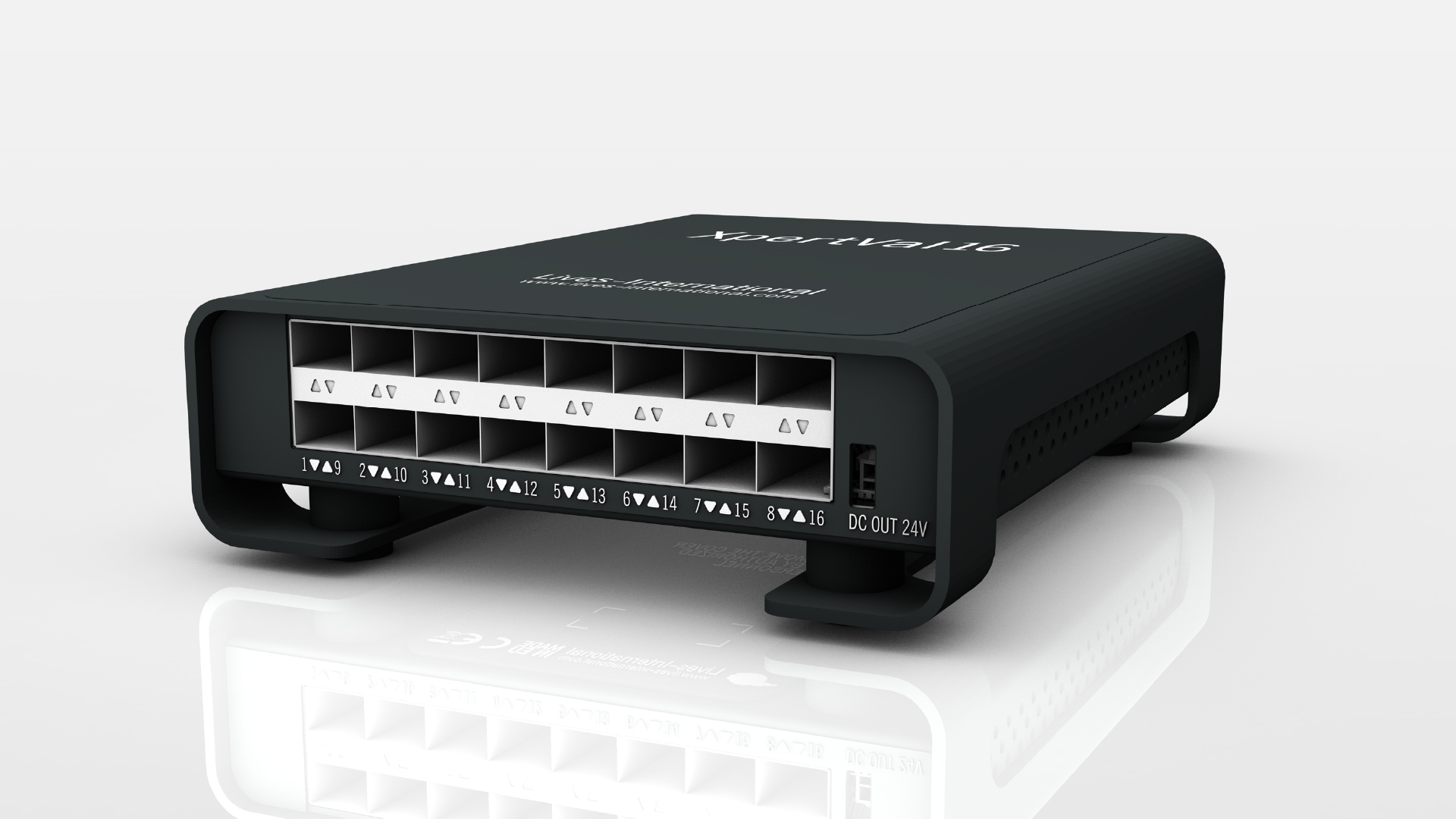

16 channels Cold junction compensation on each channel (applies to Tc's)
Measuring range
-200°C to +1200°C
Accuracy
up to ±0.05°C
Memory capacity
Internal memory: 16 GB Backup memory: USB storage device compatible
Sampling rate
1s to 24h for 64 channels
Software
21 CFR Part 11 Compliant
Universal input
4 - 20 mA / 0-10 V
Communication

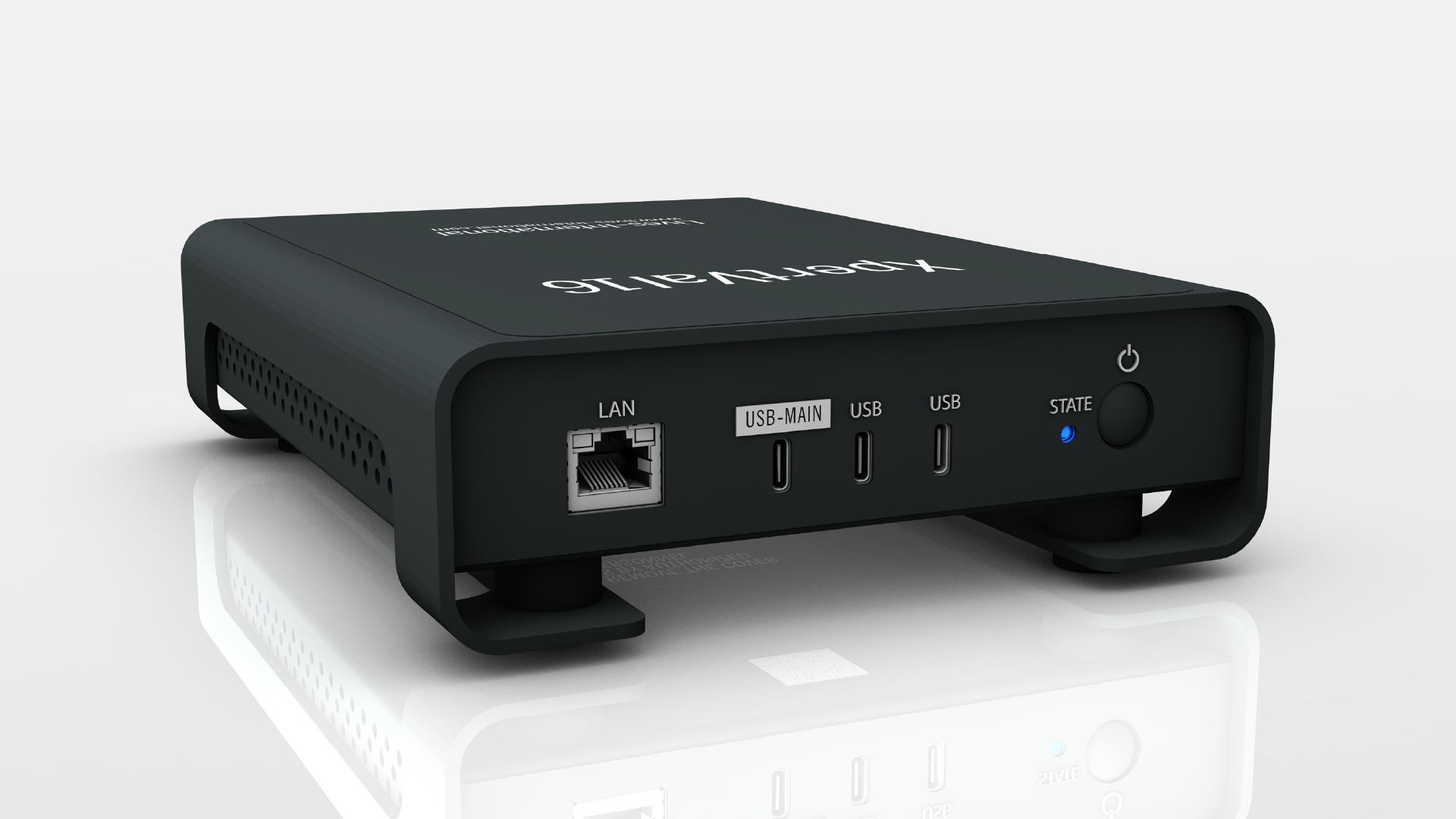

1 x USB-C to PC 2 x USB-C to equipment 1 x LAN to PC (with Power Over Ethernet) 1 x 2.4 GHz, 802.11b/g/n
Battery
Internal rechargeable battery Up to 16 hours running time
Main power
100V to 240V @ 50/60Hz USB-C charging

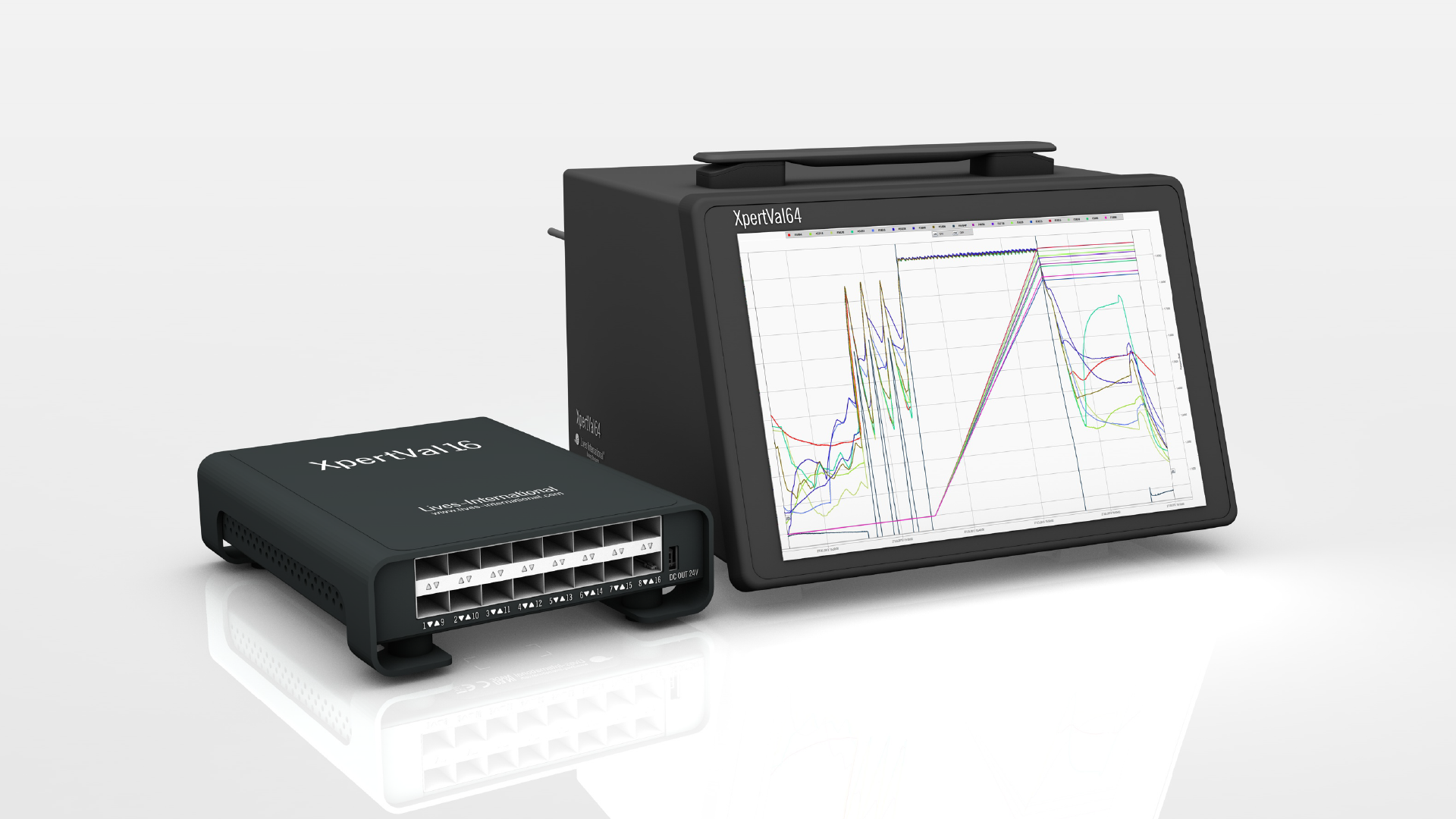

Synchronization
Multiple units can be synchronized to run simultaneously
Closed loop calibration
Required when using thermocouples for thermal validation System uses temperature block and reference probe, controlled with or without software. Reports generated automatically by the software.
Reference probes
USB XpertVal to PC 2.4 GHz, 802.11b/g/n
Compatible Reference probes
Lives XpertRTD, Fluke 1502A, IQRTD
Compatible Dry blocks
Ametek, Fluke, Sika, Isotech, Kaye
Calibrations
XpertVal16 does not require calibration Sensor calibration: NIST/COFRAC
