Main voltage / batteries (2 x 3.6 AA Lithium batteries)

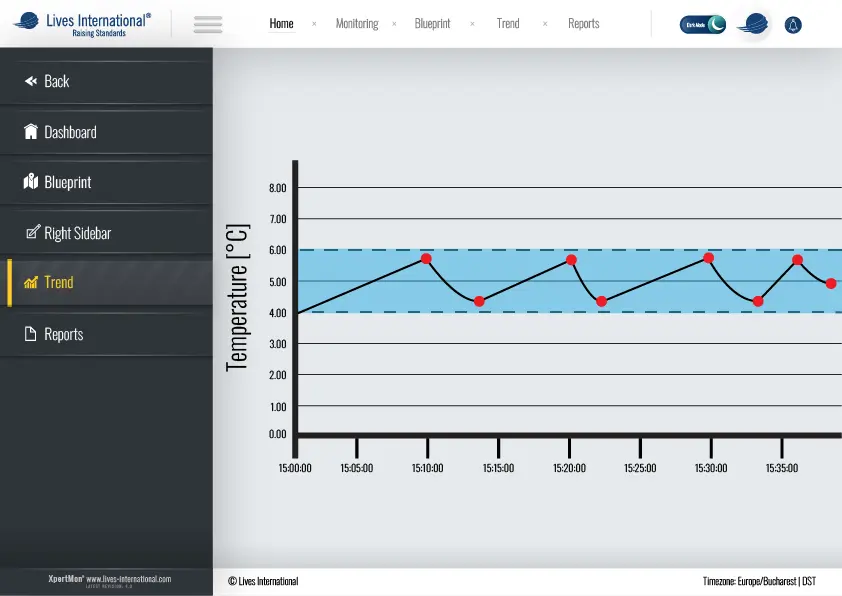

XpertMon by Lives International - state of the art system controlled by our web based software, developed to provide the best real time continuous environmental information. Access securely data stored on the cloud/local server remotely from any type of device: tablet, desktop, laptop, mobile phone, etc. Receive/Acknowledge alarms by e-mail, sms, browser in case of events.
temperature, humidity, pressure, differential pressure, CO2, contact, o-10 V analog sensors, 4-20 mA analog sensors,
connect unlimited number of loggers
PT-100 or Tc
range: -200°C to +400°C
accuracy: 0.1°C
resolution: 0.01°C
Pressure
range: 0.01 to 5 bar
accuracy: 10 mbar
resolution: 0.1 mbar
Differential pressure
range: ±100 Pa
accuracy at 23±5°C: ±1.5 % FS
resolution: 0.1Pa
Humidity
range: 0 to 100%
accuracy: 2%
resolution: 0.01%
Carbon dioxide
range: 0 to 20%
accuracy: 0.5%
resolution: 0.01%
Display
LCD 2.9"
Power
main voltage / batteries (2 x 3.6 AA Lithium batteries)
Data
wireless towards the gateway
Transmission
radio frequency (RF)
Storage
internal memory, cloud, local server
Access
desktop, laptop, tablet, smartphone
Alarms
on local display, e-mail, sms, browser
Wireless range
5km line of sight
FCC, ETSI, EMC, Electrical Safety Compliant
Gateway
XpertMon Gateway allows all the monitoring nodes in that area to connect to the network through various types of connections.
The gateways transmit secured data to the server using the local network or GSM/LTE mobile network
IP67/NEMA-6 industrial-grade enclosure with cable glands
PoE + Surge Protection
backhaul: Wi-Fi, LTE, and Ethernet
up to 5 hours of autonomous work on battery (Battery + Solar Kit optional)
operating temperature range: -30°C ~ +55°C
dimensions: 220mm x 220mm x 104mm
weight: approximately 5.05kg including the mounting kit
FCC, ETSI, EMC, Electrical Safety compliant
