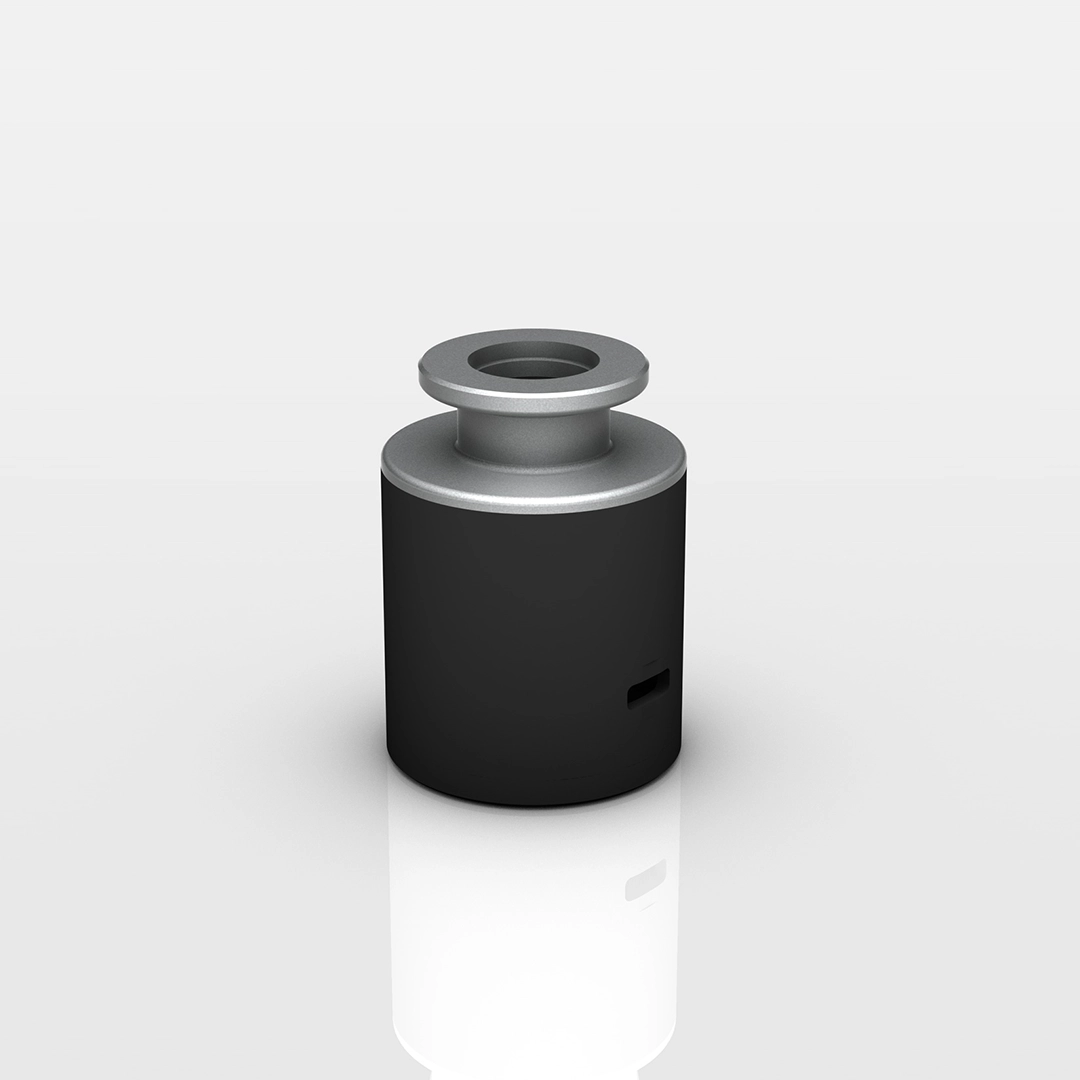

Real Time Wireless Temperature and Vacuum Data Logger with Integrated Sensor
Wireless Data Logger GMP RF TV
10-5mbar to 1300mbar
-60°C to +85°C
• Collects and transmits real time temperature to XpertLog Software
• ITS-90 Calibration coefficients are stored in the internal memory
• Complies with FDA 21 CFR Part 11
• Network ready: multiple users, centralized, server database, active directory authentification
• Calibration can be performed on site
• Can be remotely activated
Order Reference
GMP-RF-TV
Documents
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Sensor Type
Vacuum: Resistive diaphragm + Pirani
Temperature: Integrated
Operating Range
- body
10-5 to 1300 mbar
0°C to +50°C
- sensor
-60°C to +85°C
Accuracy
1300 down to 100 mbar: 0.5% of reading
99.9 down to 10 mbar: 1% of reading
9.99 down to 10-4 mbar: 5% of reading
9.99 x 10-5 down to 10-4mbar: 25% of reading
Resolution
0.1 μbar; 0.01°C
Memory capacity
16,000 data points vacuum / 16,000 data points temperature
Memory type
non volatile
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 20 loggers
sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
Peek 1000 - FDA compliant
- material
stainless steel
- enclosure
IP-51
- weight
132 g (4.65 oz)
- diameter
40.2 mm (1.58")
- height
62 mm (2.16")
Power
Requires external USB-C
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band
Standard calibration points
1000mbar
500mbar
250mbar
100mbar
15mbar
2mbar
10-1mbar
10-2mbar
10-3mbar

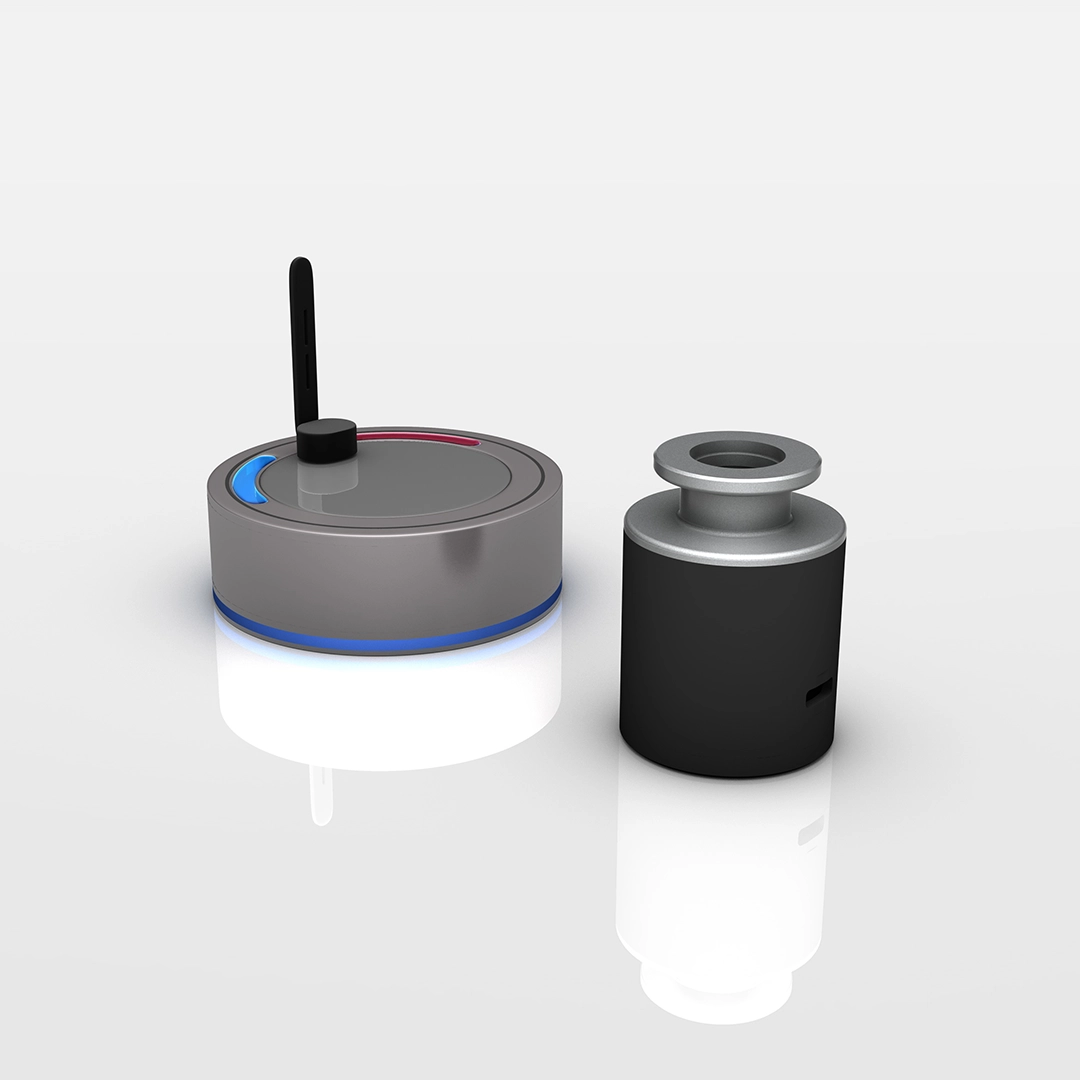

Access point
USB/LAN to computer
Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations:
User Calibrations:
traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog® Software
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
