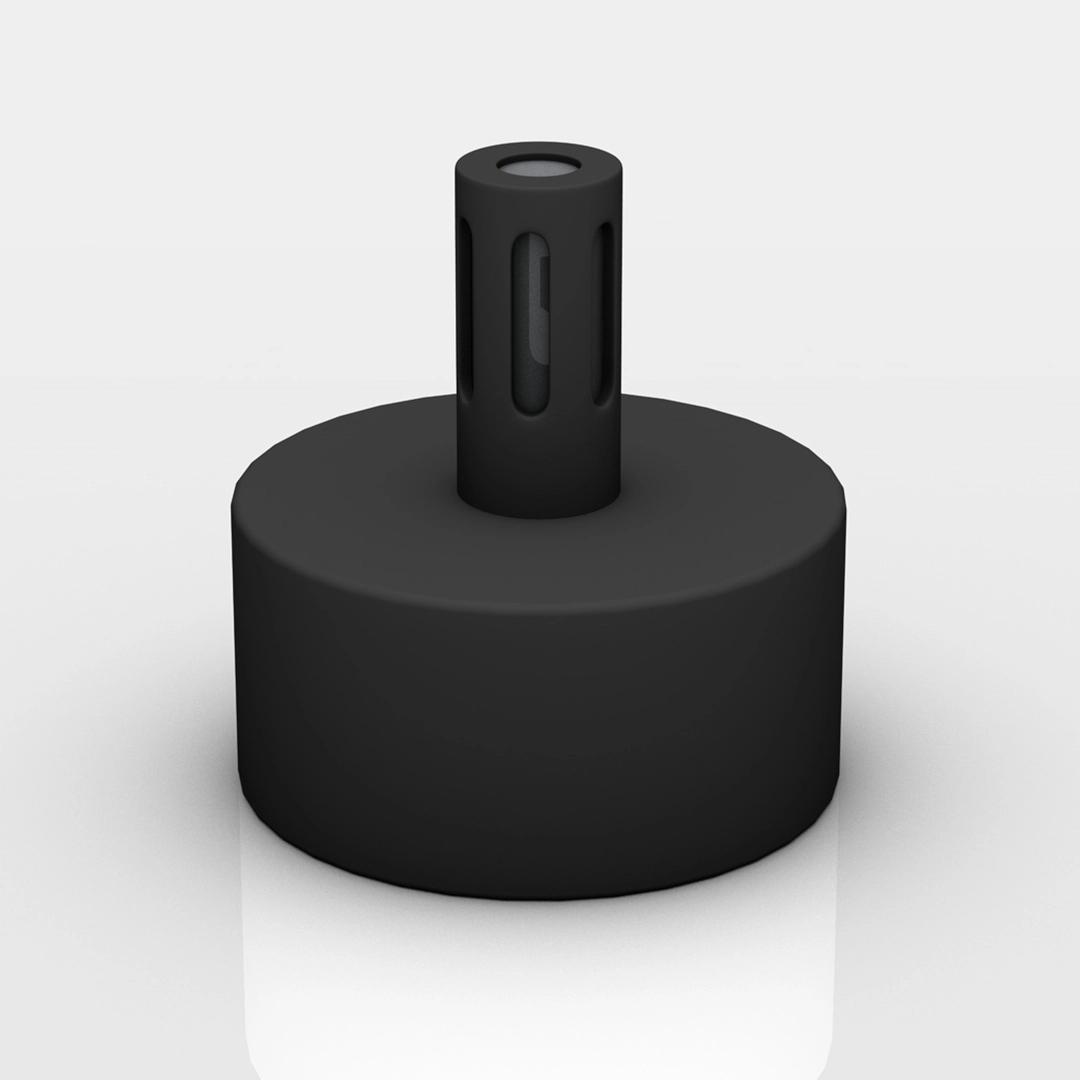

Real Time Wireless Temperature and Humidity Data Logger with Rigid Sensor
Wireless Data Logger GMP RF TH
0% to 100% RH non condensing
-40°C to +100°C
Real time data logger for monitoring temperature and humidity. Highly efficient (quick validation time), highly reliable (real time data), impressive accuracy (±0.1°C)
• Collects and transmits real time temperature to XpertLog Software
• ITS-90 Calibration coefficients are stored in the internal memory
• Complies with FDA 21 CFR Part 11
• Network ready: multiple users, centralized, server database, active directory authentification
• Calibration can be performed on site
• Can be remotely activated
Order Reference
GMP-RF-TH
Documents
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Sensor Type
Hum: capacitive / Temp: 4 wires PT-100
- rigid
20 mm (0.8")
- customized
available
- sensor size
1.5 x 8 mm (0.06 x 0.315")
- cross section
1.77 mm2 (0.0027 inch2)
- body
0% to 100% RH non condensing
-40° to +100°C
- sensor
-40° to +100°C
Accuracy
±2.0% RH, 0% to 75% non condensing at +20°C to +45°C
±3.0% RH, 75% to 100% non condensing at +20°C to +45°C
±0.1°C from -40°C to +100°C
Resolution
0.01% RH; 0.01°C
Memory capacity
16,000 data points humidity / 16,000 data points temperature
Memory type
non volatile
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 20 loggers
sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
- enclosure
IP-51
- weight
95 g (3.35 oz)
- diameter
65 mm (2.56")
- height
62 mm (2.44")
Power
2 x Lithium batteries, 0.35 g/each Lithium content
classified UN3091 under IATA DGR section 3.9.2.6
compliant with ICAO/IATA packing instructions 970,
user replaceable
Battery lifetime
Up to 6 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band

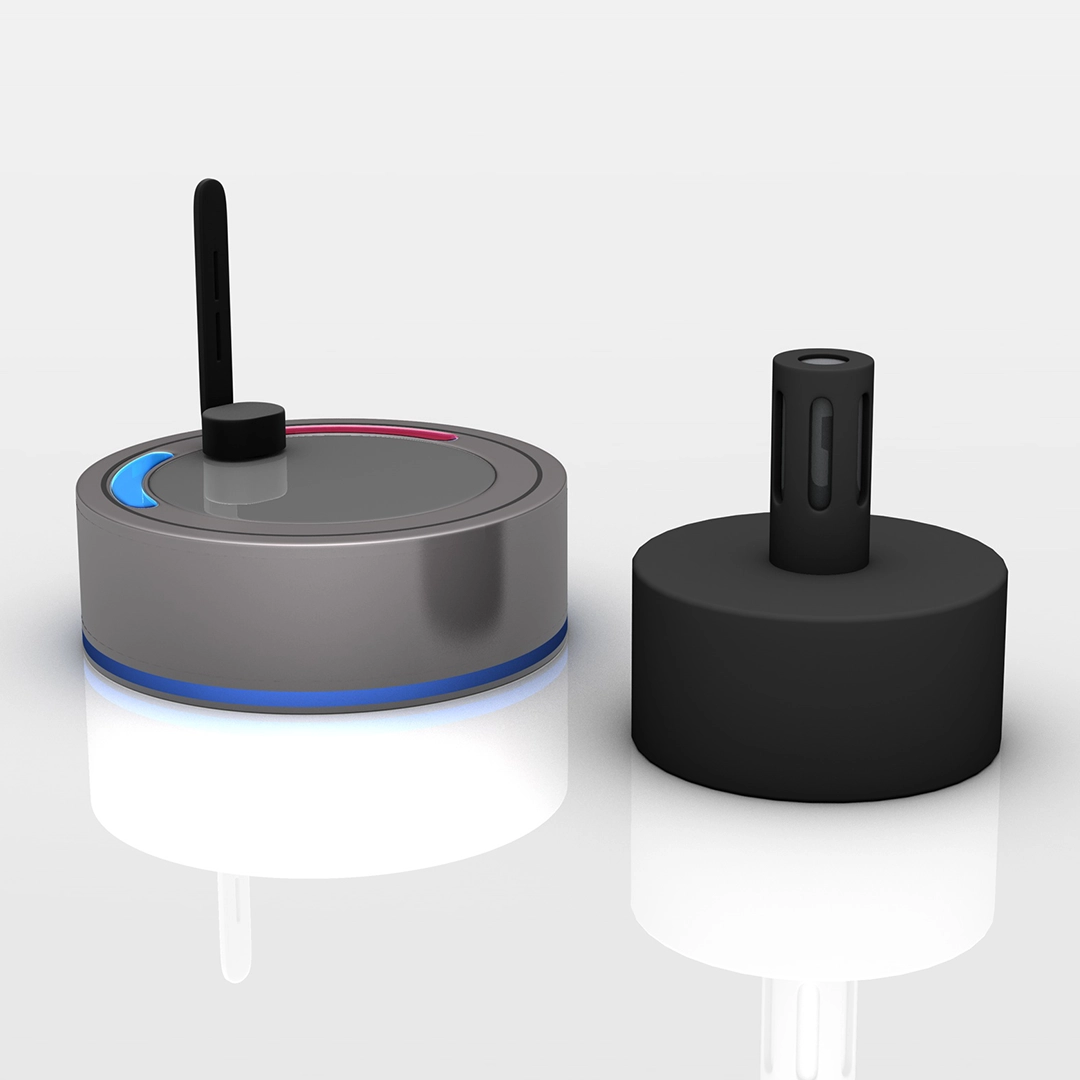

Access point
USB to computer
Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations:
User Calibrations:
traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog® Software
Standard Calibration Points
25°C / 20% RH
25°C / 45% RH
30°C / 65% RH
40°C / 75% RH
Upon special request:
45°C / 90% RH
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
