Real Time Wireless Temperature Data Logger with Flexible Sensor
Wireless Data Logger GMP RF F 6R3V
-50°C to +85°C

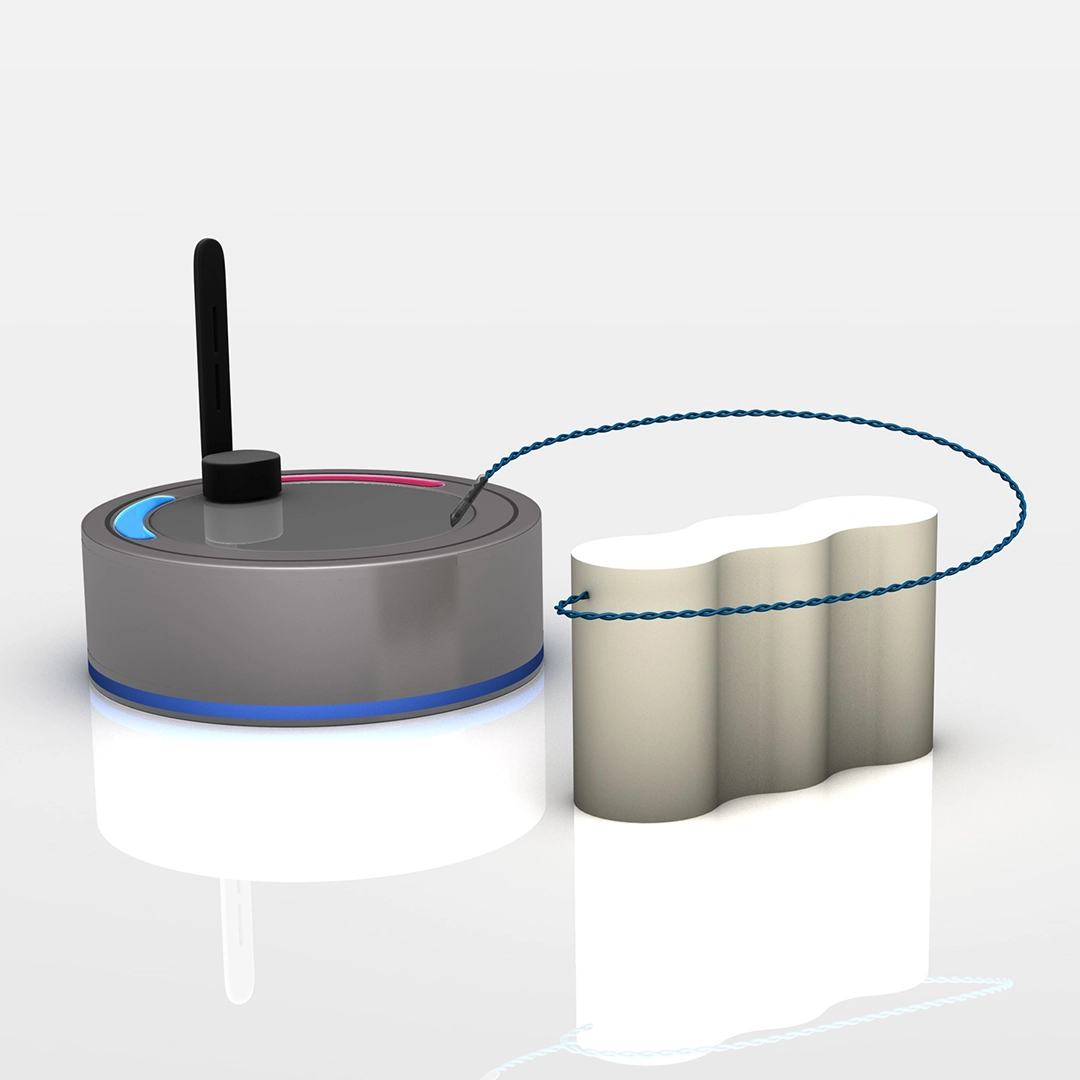

XpertLog® GMPF RF 6R 3V small size temperature data logger designed to fit between 2R vials.
• Collects and transmits real time temperature to XpertLog Software
• ITS-90 Calibration coefficients are stored in the internal memory
• Complies with FDA 21 CFR Part 11
• Network ready: multiple users, centralized, server database, active directory authentification
• Calibration can be performed on site
• Can be remotely activated
Order Reference
GMP-RF-F-6R3V
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Sensor Type
4 wires thin, teflon
- flexible
200 mm (7.87") or custom lenght
- customized
up to 5000 mm (195")
- sensor size
1.2 x 1.6mm (0.05 x 0.06")
- cross section
0.48 mm2 (0.0007 inch2)
- body
-50° to +85°C
- sensor
-90° to +140°C
Accuracy
±0.1°C from -50°C to +85°C
Resolution
0.01°C
Memory capacity
32,000 data points
Memory type
non volatile
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 20 loggers
sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
Screws: 316L
- enclosure
IP-68
- weight
54g (1.91 oz)
- diameter
72 mm (2.84")
- width
- height
18 mm (0.70")
33 mm (1.3")
Power
2 x Lithium batteries
user replaceable
Battery lifetime
Up to 4 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band
Access point
USB to computer
Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations:
User Calibrations:
traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog® Software
Standard Calibration Points
-50°C
0°C
+85°C
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
