Real Time Wireless Temperature Data Logger with Flexible Sensor
Wireless Data Logger GMP RF F 10R THIN
-60°C to +85°C
Small size real time temperature data logger with flexible temperature sensor, for placing between vials. Fits the height and diameter of 10R vials.

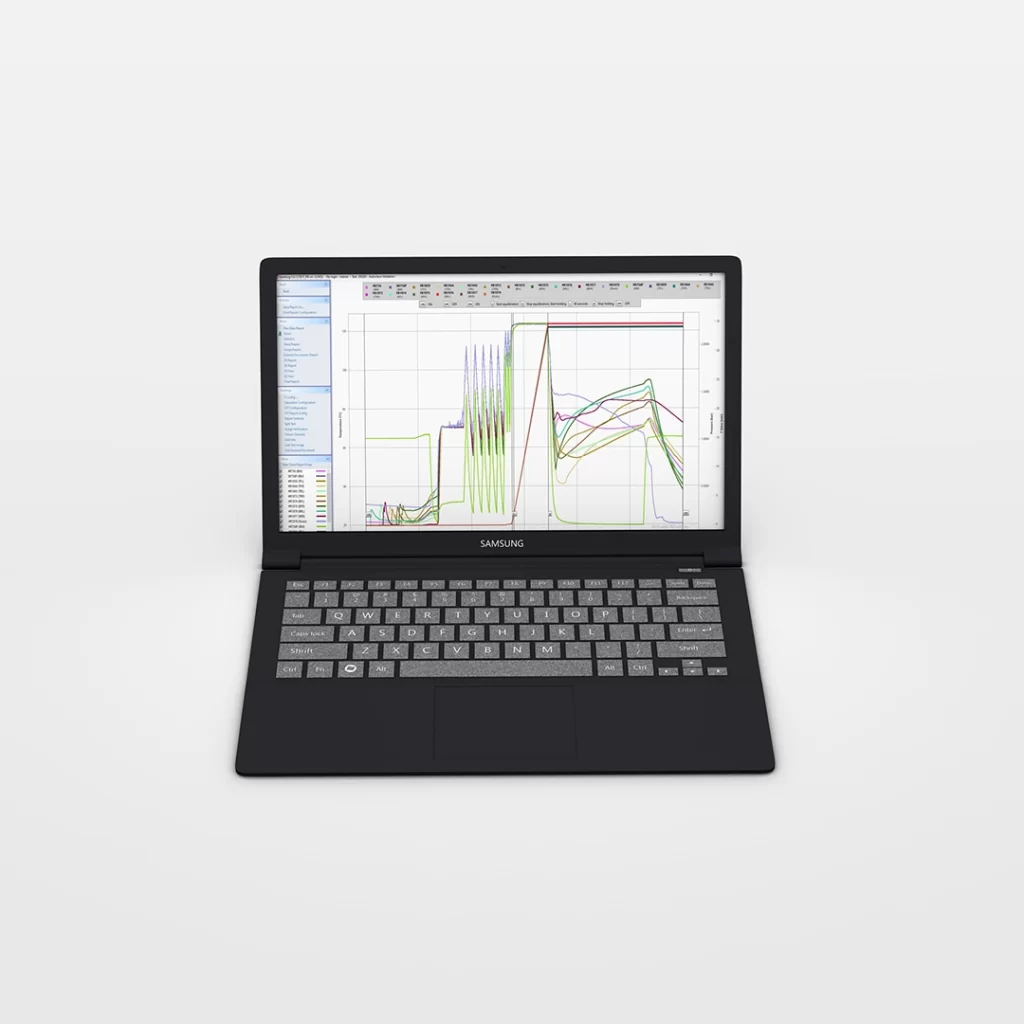

• Collects and transmits real time temperature to XpertLog Software
• ITS-90 Calibration coefficients are stored in the internal memory
• Complies with FDA 21 CFR Part 11
• Network ready: multiple users, centralized, server database, active directory authentification
• Calibration can be performed on site
• Can be remotely activated
Order Reference
GMP-RF-F-10R-THIN
GMP-RF-F-10R-THIN-NOTIP
Specifications
Characteristics
LVSC.3.2.0 - January 2022
Sensor Type
4 wires thin
- flexible
150 mm (6") or custom lenght
- customized
up to 5000 mm (195")
- sensor size
1.2 x 1.6 mm (0.05 x 0.06")
- cross section
0.48 mm2 (0.0007 inch2)
- body
-60° to +85°C
- sensor
-200° to +140°C
Accuracy
±0.1°C from -60°C to +85°C
Resolution
0,01°C
Memory capacity
32,000 data points
Memory Type
non volatile
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 24 loggers
sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
- enclosure
IP-68
- weight
24g (0.85 oz)
- diameter
25 mm (0.98")
- height
46 mm (1.81")
Power
1 x Lithium batteries, 0.35 g/each Lithium content
classified UN3091 under IATA DGR section 3.9.2.6
compliant with ICAO/IATA packing instructions 970,
user replaceable
Battery lifetime
Up to 6 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 Ghz ISM band
Access point
USB to computer
Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations:
User Calibrations:
traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog® Software
Standard Calibration Points
-60°C
0°C
+85°C
Certifications
EMC:
Health Safety:
RF:
EN 60601-1-2 / 2007
EN 60950-1 / 2006
EN 300440-2 v.1.3.1 (2009-03)
