Temperature and Pressure Data Logger with Flexible Sensor
Standard Data Logger GMP TP F
Pressure: 0.01 BarA to 5 BarA Temperature: -40°C to +140°C
Standard data logger for recording pressure and temperature values. Easy to program and install, no data loss during validation process, multiple users can share the same database simultaneously. Factory calibration on users site.
• Collects and stores temperature information in the internal memory • Recover the data through the docking station using XpertLog® Software • ITS-90 calibration coefficients are stored in the internal memory • Complies with FDA 21 CFR Part 11 • Network ready: multiple users, centralized, server database, active directory authentification • Calibration can be performed on site
Pressure: 0.01 BarA to 5 BarA Temperature: -40°C to +140°C
- sensor
-40° to +140°C
Accuracy
±10 mbar ≤ 3 BarA @ 130°C ±15 mbar > 3 BarA @ 130°C ±15 mbar ≤ 3 BarA @ 23°C ±30 mbar > 3 BarA @ 23°C ±0.1°C from -40°C to +140°C
Resolution
0.1 mbar; 0.01°C
Memory capacity
16,000 data points pressure / 16,000 data points temperature
Sampling rate
1 sec to 24 hours
Transmission
simultaneous: maximum 24 loggers sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
- enclosure
IP-51
- weight
57 g (2.01 oz)
- diameter
40 mm (1.57")
- height
69 mm (2.72")
Power
1 x Lithium battery, 0.35 g/each Lithium content classified UN3091 under IATA DGR section 3.9.2.6 compliant with ICAO/IATA packing instructions 970, user replaceable
Battery lifetime
Up to 12 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 GHz ISM band

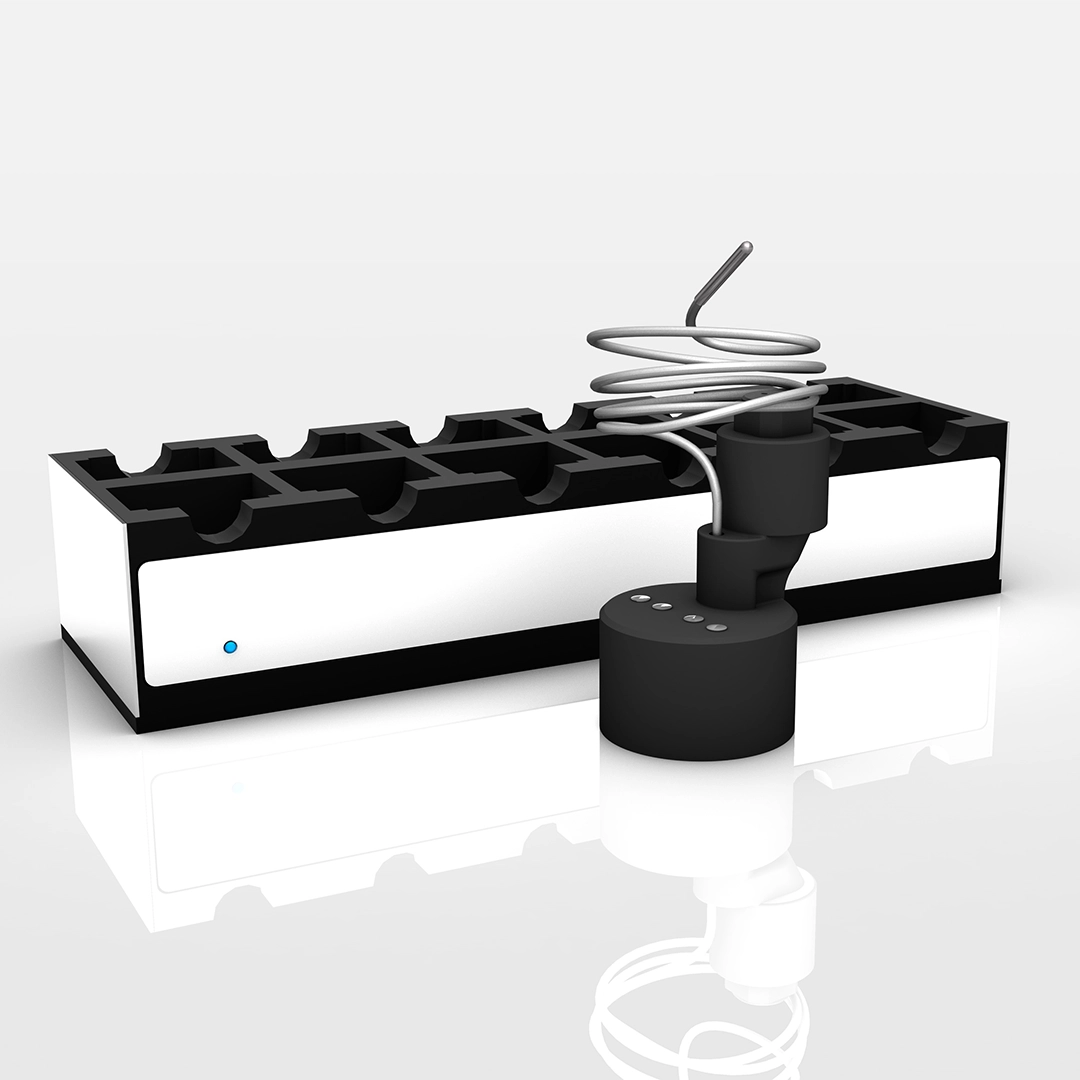

Docking station
USB to computer 4, 8, 12 and 20 ports available Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations: traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory User Calibrations: closed loop calibration using XpertLog® Software
Standard Calibration Points
hysteresis at 23°C and 130°C: • 0.05 BarA • 0.50 BarA • 1.00 BarA • 1.50 BarA • 2.00 BarA • 2.50 BarA • 3.00 BarA • 3.50 BarA • 4.00 BarA • 4.50 BarA • 5.00 BarA
Certifications
EMC: EN 60601-1-2 / 2007 RF: EN 300440-2 v.1.3.1 (2009-03)
