Temperature Data Logger with Rigid Sensor

-40°C to +85°C

Non-buffered data logger for capturing temperature values. Covers all the application between -40°C to +85°C, offers best accuracy in its class (±0.1°C).

• Collects and stores temperature information in the internal memory
• Recover the data through the docking station using XpertLog^® Software
• ITS-90 calibration coefficients are stored in the internal memory
• Complies with FDA 21 CFR Part 11
• Network ready: multiple users, centralized, server database, active directory authentification
• Calibration can be performed on site

Order Reference

GDP

Documents

Specifications

Characteristics

LVSC.3.2.0 - January 2022

Sensor Type

4 wires PT-100

- rigid

20 mm (0.8")

- sensor size

1.5 x 8 mm (0.06 x 0.315")

- cross section

1.77 mm² (0.0027 inch²)

- body

-40° to +85°C

- sensor

-40° to +85°C

Accuracy

±0.1°C from -40° to +85°C

Resolution

0.01°C

Memory capacity

32,000 data points

Memory type

non volatile

Sampling rate

1 sec to 24 hours

Internal clock drift

4 sec / 24 h @ 23°C

Mechanical

- material

POM-C; FDA compliant

- enclosure

IP-67

- weight

44 g (1.55 oz)

- diameter

40 mm (1.57")

- height

50 mm (1.97")

Power

1 x Lithium batteries, 0.35 g/each Lithium content
classified UN3091 under IATA DGR section 3.9.2.6
compliant with ICAO/IATA packing instructions 970,
user replaceable

Battery lifetime

Up to 12 months, based on usage

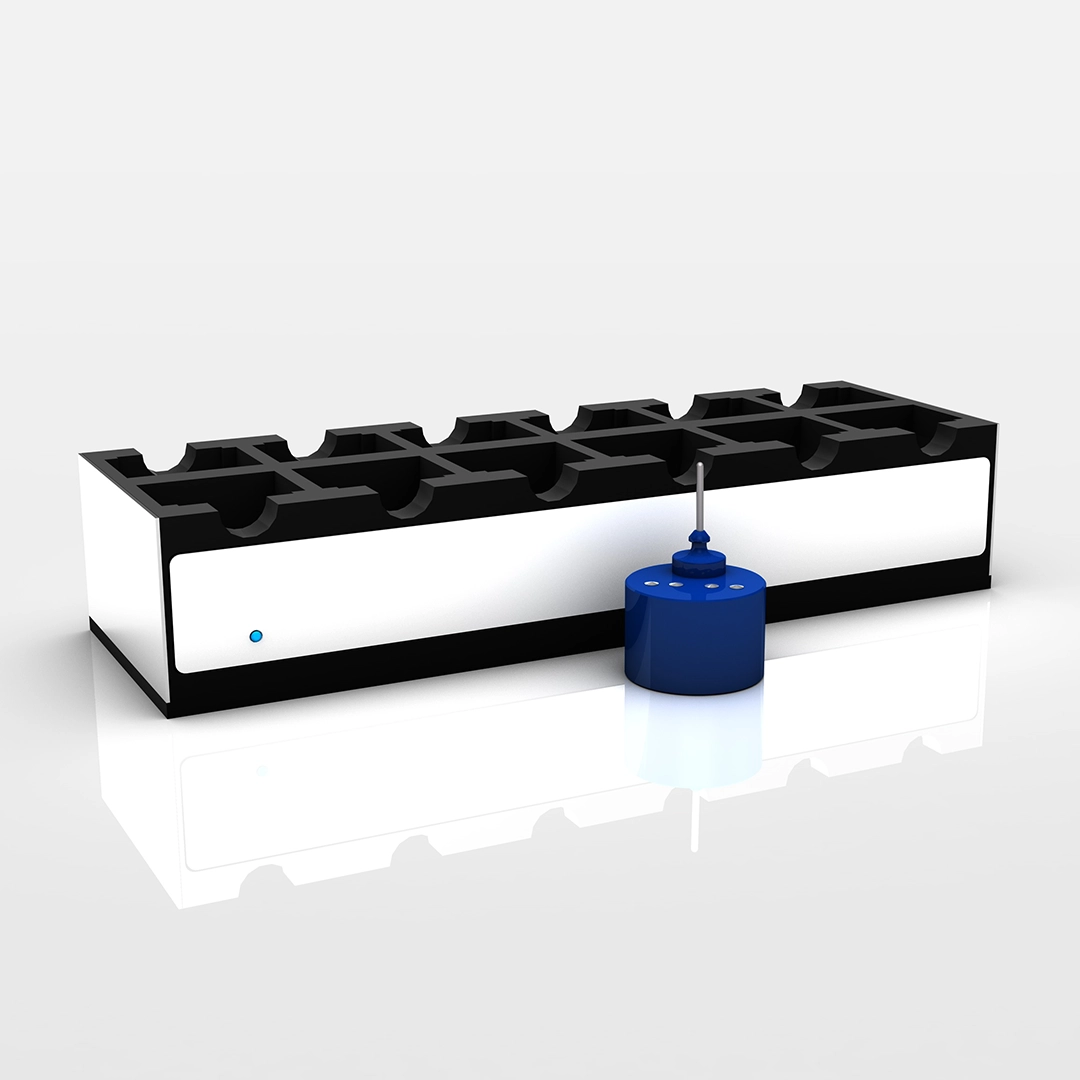

Docking Station

USB to computer
4, 8, 12 and 20 ports available
Programs and reads unlimited number of loggers

Calibrations

Factory Calibrations:
User Calibrations:

traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory
closed loop calibration using XpertLog^® Software

Standard Calibration Points

• -40°C
• 0°C
• 85°C

Certifications

EMC:
Health Safety:

EN 60601-1-2 / 2007
EN 60950-1 / 2006

Applications

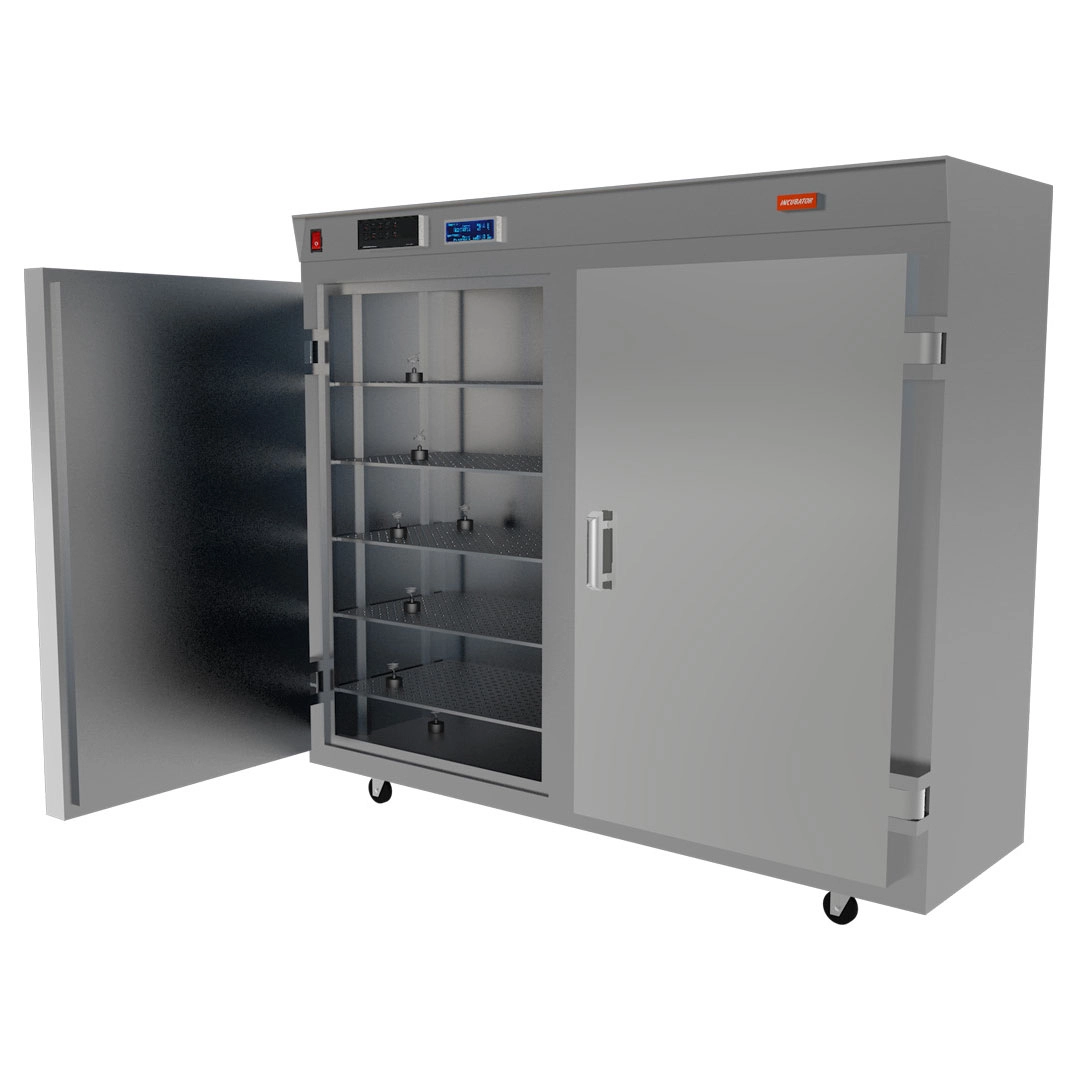

Incubators

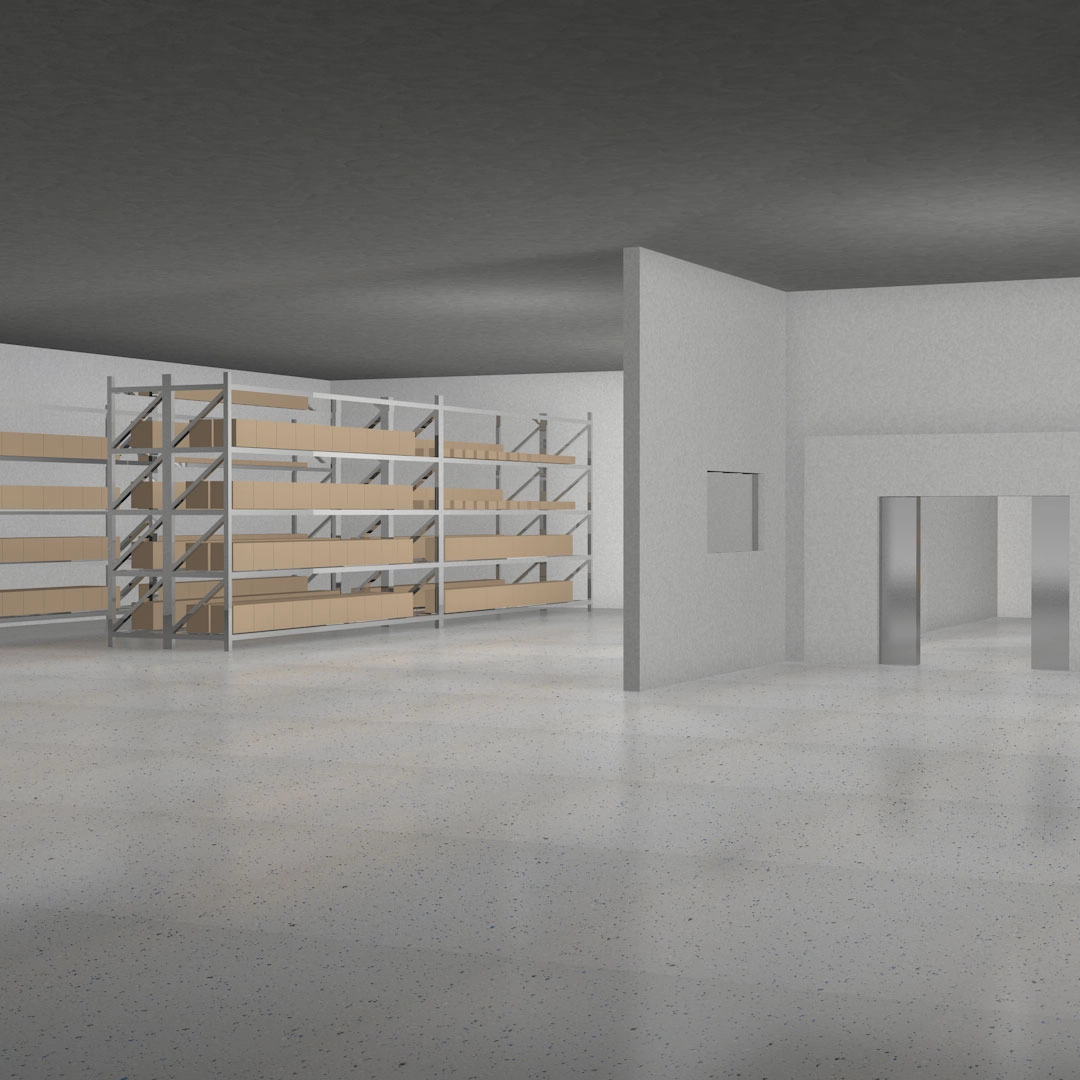

Warehouses

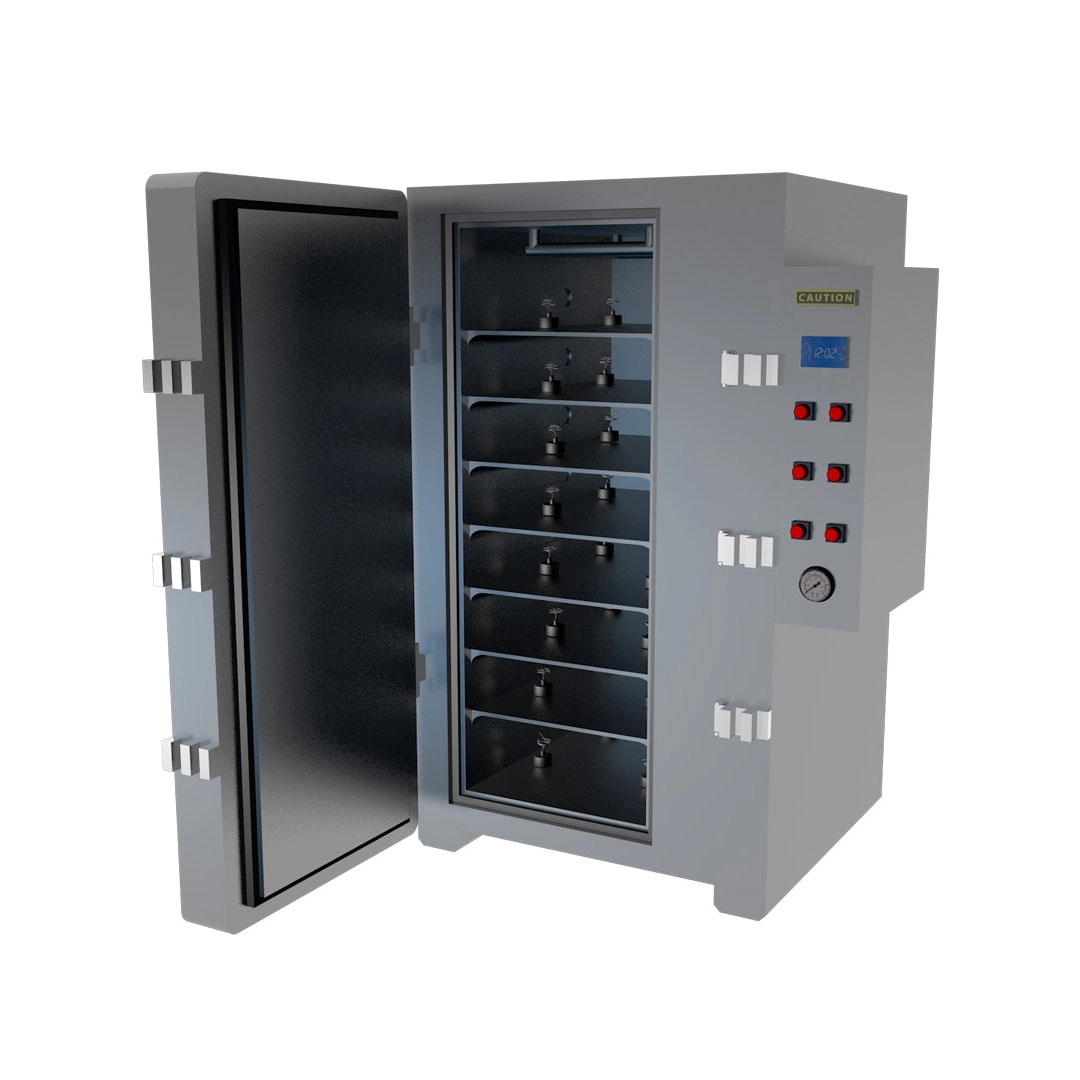

Refrigerators

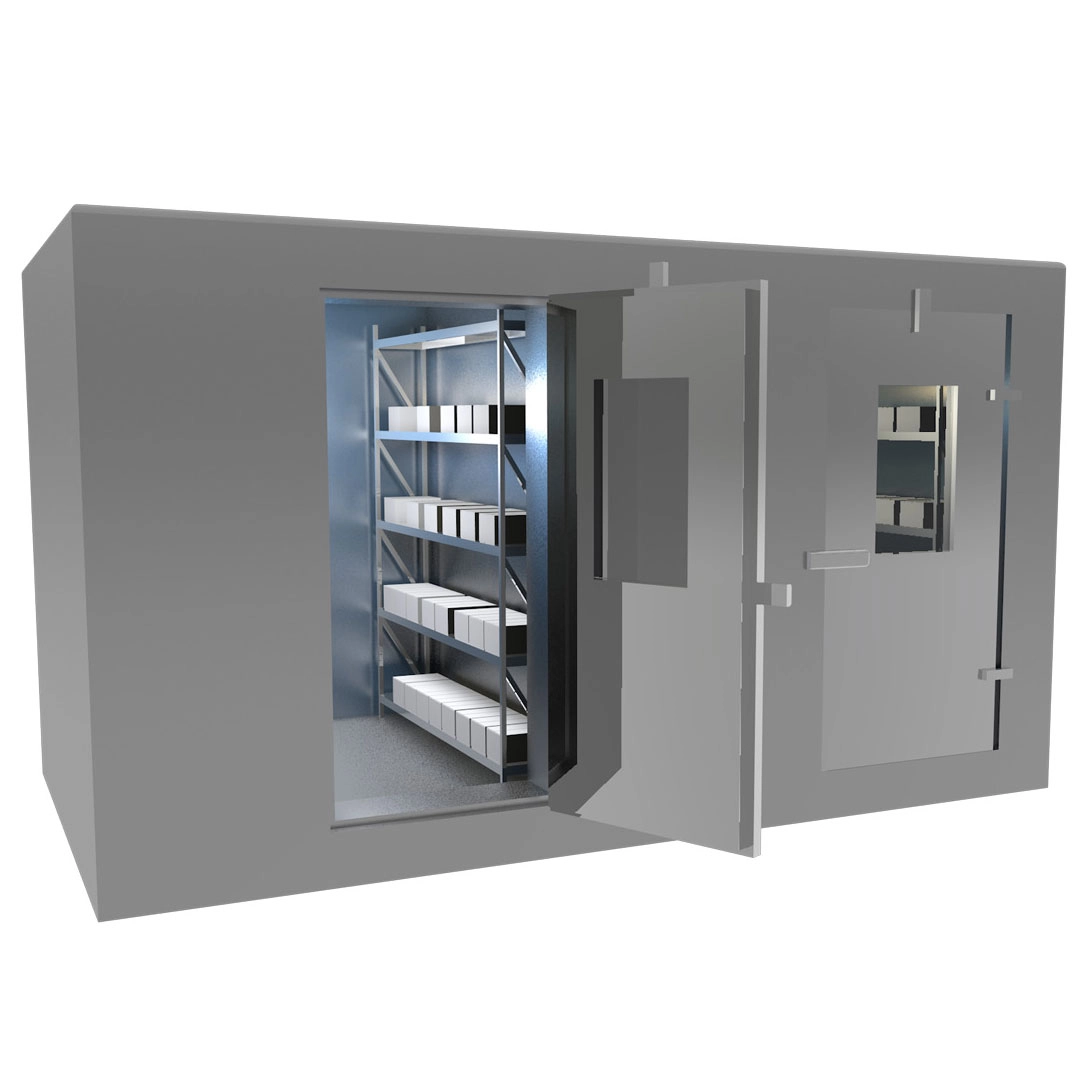

Cold rooms

Cold chain shipments

Logistics

Models

Standard data logger GMP F

Standard data logger GMP F THIN

Standard data logger GMP F LP

Standard data logger GMP SW

Standard data logger GMP

Standard data logger GMP TH F

Standard data logger GMP TH

Standard data logger GMP TP F

Standard data logger GMP TP

Accessories

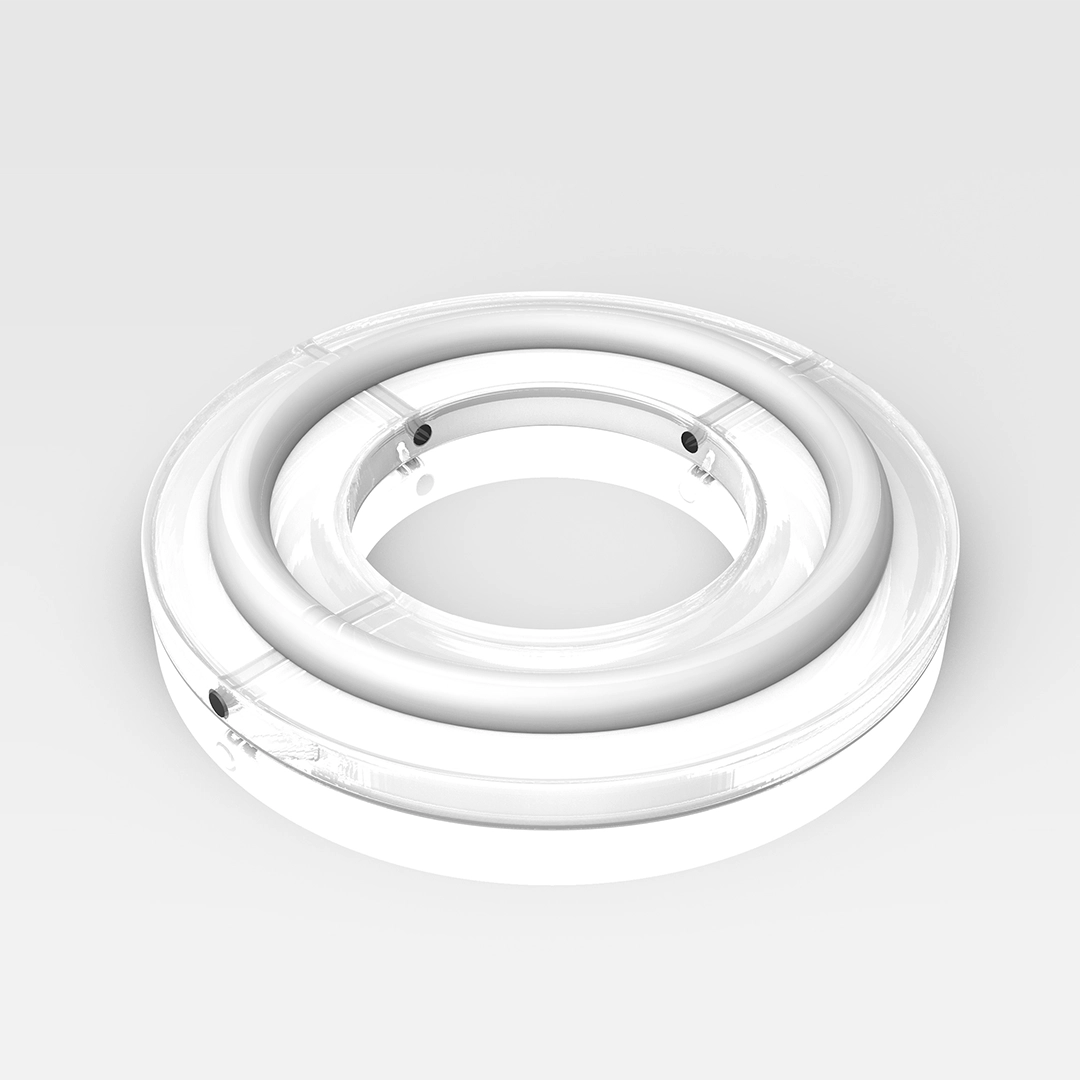

Smart Gaskets

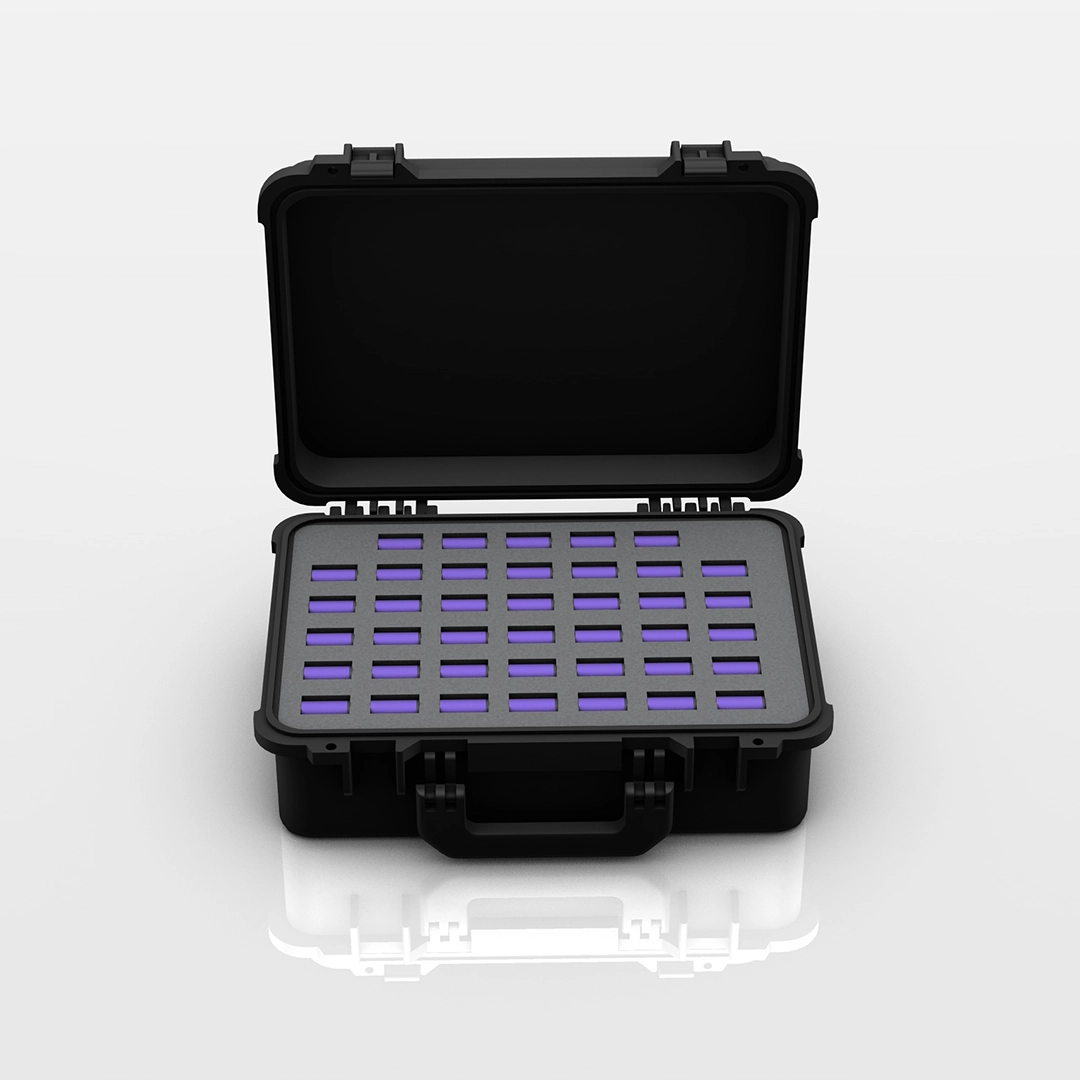

Battery kit

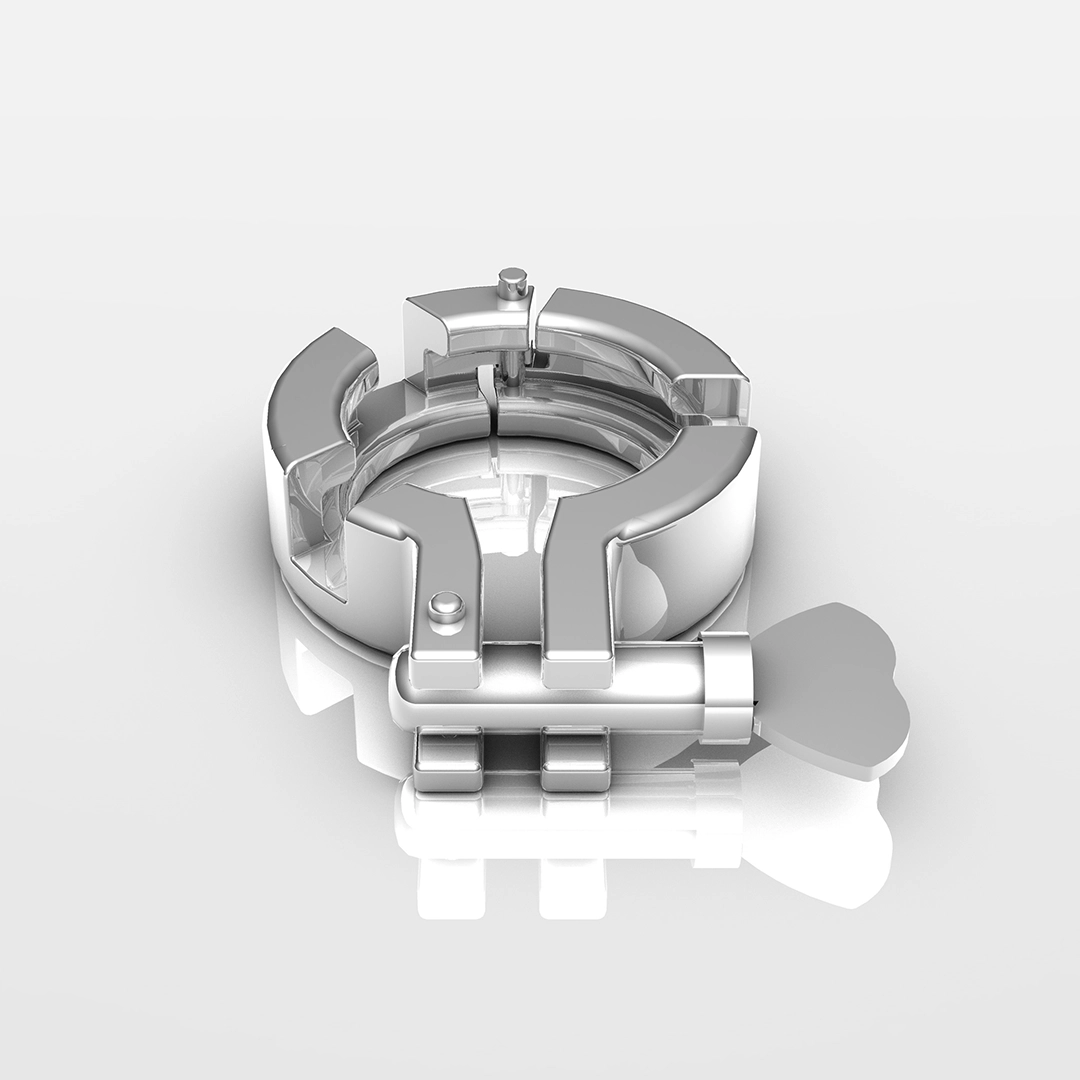

Clamps

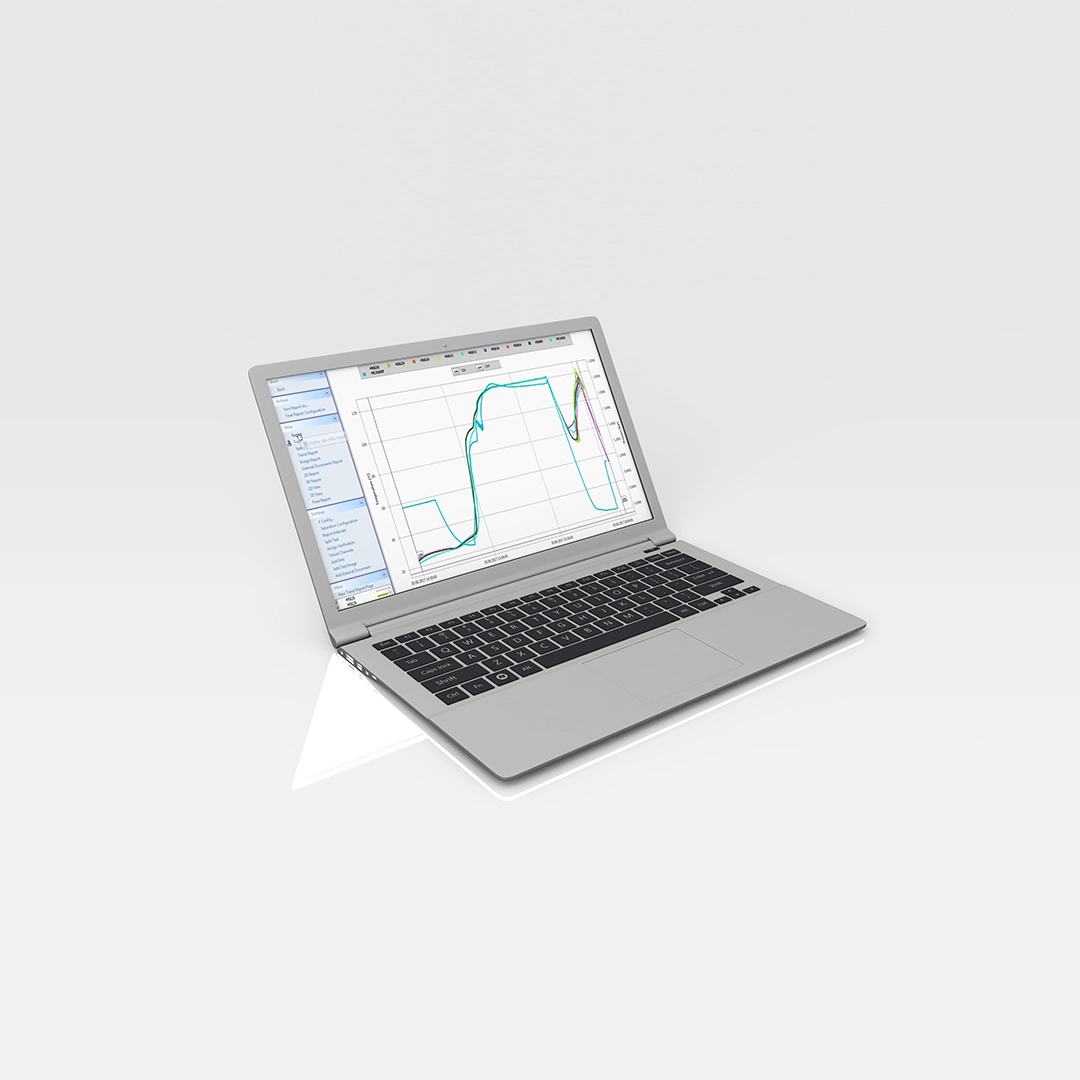

Laptop

Shelf mapping puck

Sensor holder
