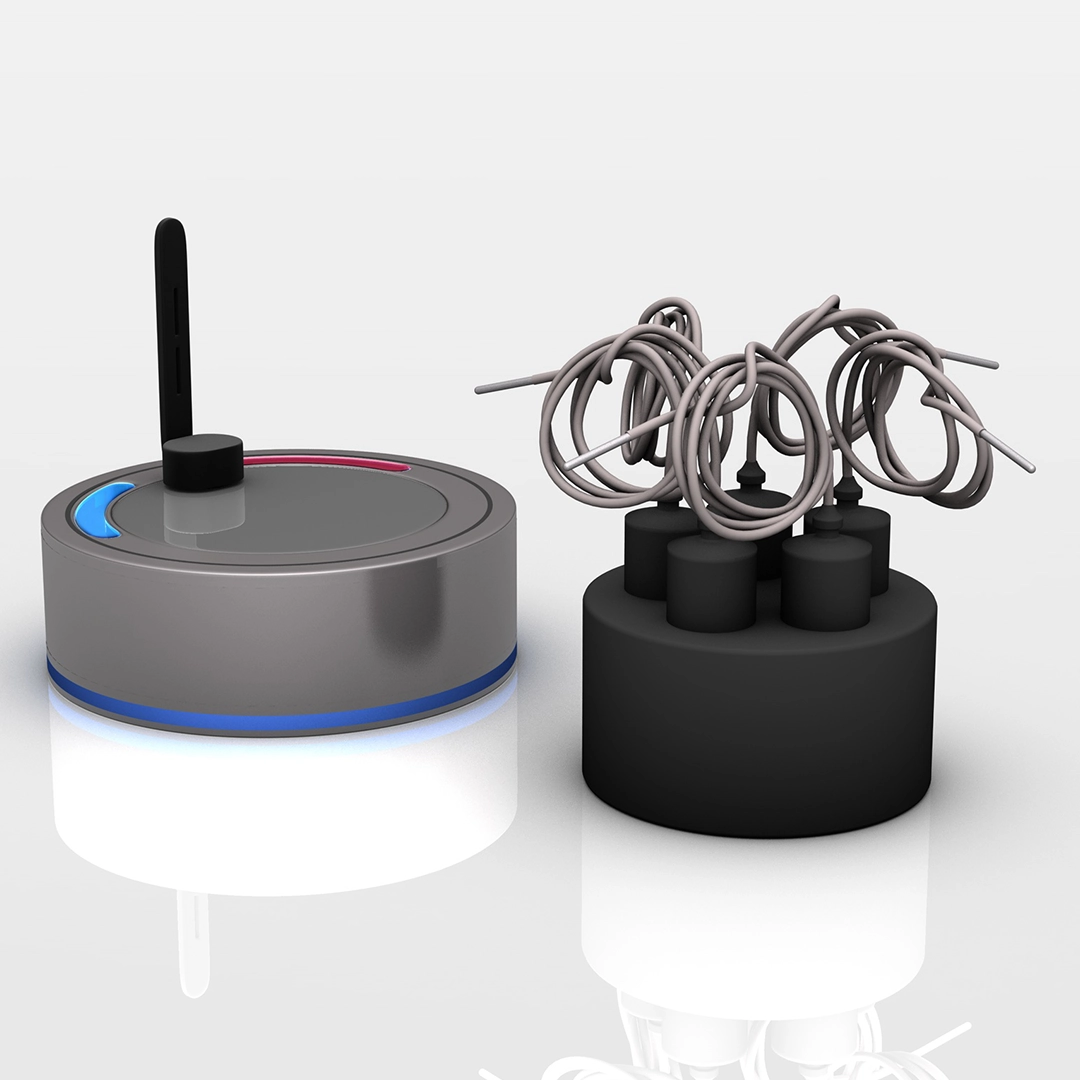

Real time wireless temperature data logger with 5 flexible sensor
Wireless data logger GMP RF 5F
-90°C to +140°C

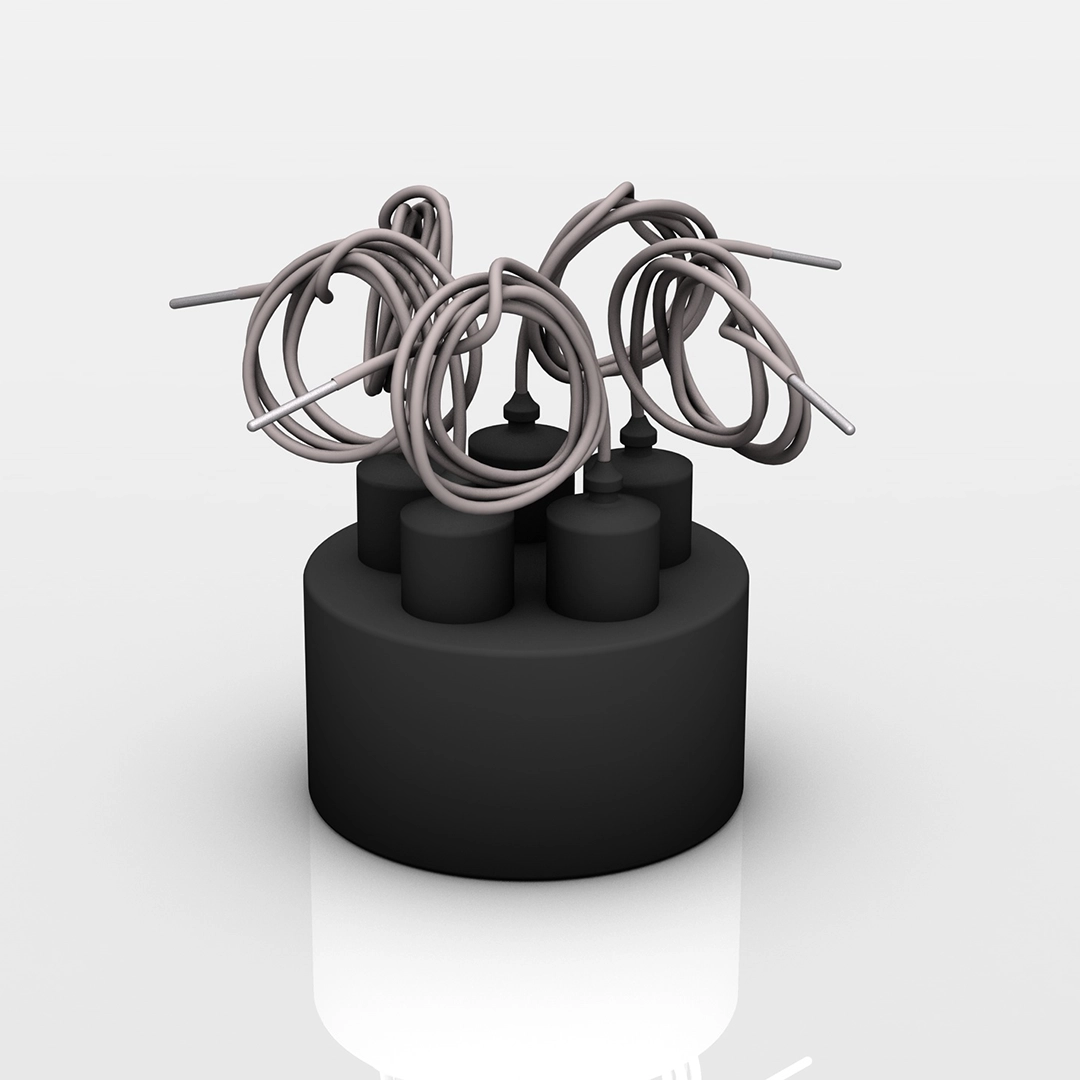

Real time temperature data logger with five flexible PT-100 sensors.
• Collects and transmits real time temperature to XpertLog Software • ITS-90 Calibration coefficients are stored in the internal memory • Complies with FDA 21 CFR Part 11 • Network ready: multiple users, centralized, server database, active directory authentification • Calibration can be performed on site • Can be remotely activated
simultaneous: maximum 24 loggers sequential: unlimited
Internal clock drift
4 sec / 24 h @ 23°C
Mechanical
- material
Peek 1000 - FDA Compliant
- enclosure
IP-68
- weight
170g (6.00 oz)
- diameter
65 mm (2.56")
- height
55 mm (2.17")
Power
2 x Lithium batteries, 0.35 g/each Lithium content classified UN3091 under IATA DGR section 3.9.2.6 compliant with ICAO/IATA packing instructions 970, user replaceable
Battery lifetime
Up to 6 months, based on usage
Antenna
Internal
Wireless range
121 m (400 feet)
Radio frequency
2.4 GHz ISM band
Access point
USB to computer Programs and reads unlimited number of loggers
Calibrations
Factory Calibrations: traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory User Calibrations: closed loop calibration using XpertLog® Software
Standard Calibration Points
-80°C 0°C +140°C
Certifications
EMC: EN 60601-1-2 / 2007 RF: EN 300440-2 v.1.3.1 (2009-03)
